* All core components of the microphone use domestic chips, which are safe, confidential, and the core is controllable.
* It uses a 2.1-inch IPS full-color touch screen with a simple interface.

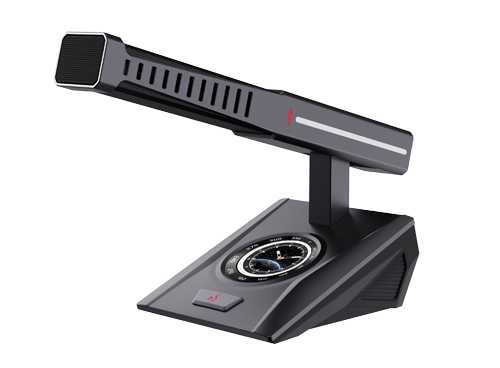

* The microphone adopts a short microphone rod and a high-sensitivity microphone core design, which supports long-distance sound pickup.
* It adopts uncompressed audio transmission technology with a sampling rate of up to 48K, and can provide perfect sound quality with a bandwidth of 80Hz-16KHz.
* It adopts 100M network transmission, and the network connection uses network cables to facilitate wiring.
* The communication adopts the standard TCP/IP protocol, and each unit can support the ping packet function
* It has a 3.5mm headphone jack that supports listening to 63+1 channels of simultaneous interpretation or connecting an external microphone.
* Each unit supports web management services, including language switching, adjustment of microphone ID, microphone sensitivity, microphone EQ and other parameters.
* It has speech timing and scheduled speech functions, and the representative machine has the function of applying for speech.
* It has internal feedback suppression function, voice control function, and adjustable voice control sensitivity
* It has a 5-band EQ adjustment function, which can adjust different sound effects according to the speaker's voice characteristics until the perfect effect is achieved.
* It has the function of switching display among four languages: Chinese (Simplified and Traditional), English, Russian and French. The PC software supports switching between two languages: Chinese and English.
* Supports (disc) clock interface display function and can display time.
* Support conference logistics service functions. The microphone unit can send requests for tea, paper and pen, manual service, etc. to the conference host.
* Supports sign-in function, and can also prohibit unit sign-in, control unit sign-in and other functions through PC software.
* Supports voting function, with multiple voting modes to choose from, and the options can be customized and sent to the unit for display.
* Supports web page firmware upgrade function.
* Supports IP address sniffing function, through PC tools can find unknown unit ID number, IP address, MAC address and other parameters
* Supports switching display function among five languages: Chinese, English, Russian, French and Traditional Chinese.
* Supports switching between blue (technological style) and red (government style) interface styles.
Microphone type |
Cardioid directional electret (gold-plated microphone core) |
Frequency response |
80Hz~16KHz |
Microphone input impedance |
680Ω |
Sensitivity |
- 40 ± 2 dB (1KHz 0dB=1V/Pa) |
Maximum SPL |
120 dB(THD>3%) |
Signal-to-noise ratio |
>80dB(A) |
Crosstalk |
>70dB |
Dynamic range |
>80dB |
THD |
< 0.1 % |
Maximum power consumption |
2.5 W |
Color |
Graphite Gray |
Sign-in function |
Physical silicone button sign in |
Base size (L×W×H) |
126×105×54mm |
Mic rod size |
240mm |
Installation |
Desktop |
Weight |
0.84 Kg |
Display screen |
LCD screen |
