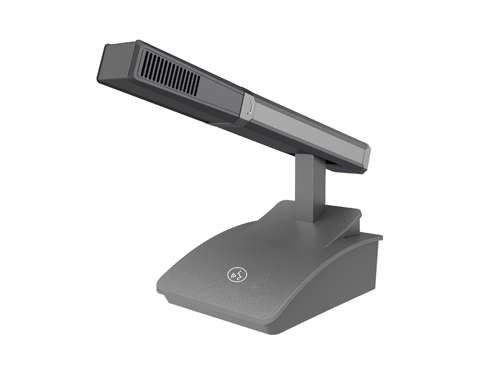

TS-W326D Conference Microphone

The Details Related Solution Related Cases Related Video Download


Features:


* All core components of the microphone use domestically produced chips, which are safe, confidential, and the core is controllable.

* The microphone adopts a short microphone rod and a high-sensitivity microphone core design, which supports long-distance sound pickup.

* It has intelligent fault detection function to prompt users of AP failure, host communication failure, low signal strength, etc.

* Supports charging via Type-C port and has intelligent indication status.

* SSID can be set via the on-screen interface .

* It has the function of switching display among four languages: Chinese (Simplified and Traditional), English, Russian and French. The PC software supports switching between two languages: Chinese and English.

* It has speech timing and scheduled speech functions.

* With voice control function, the microphone can be turned on intelligently. The voice control sensitivity can be adjusted and the closing time can be set through software.

* Supports sign-in function, which can be set up and initiated through PC software.

* It supports conference voting function, five-key election and three-key voting function, which is flexible and convenient.

* Supports (disc) clock interface display function and can display time.

* It uses 128-bit AES encryption technology and supports WPA/WPA2 wireless security technology to prevent eavesdropping and unauthorized access, providing higher confidentiality of the conference system.

* By adopting wireless transmission technology, only a very short time is needed to set up the venue before carrying out venue activities.

* The chairman has the priority function and can turn off the microphones of all delegates who are speaking .

* It uses a 2.1-inch full-color touch screen.

* It has a 3.5mm headphone jack and can be connected to an external microphone.

* Built-in lithium battery, the battery capacity supports 12 hours of continuous speaking .


Specifications:


Microphone type

Cardioid directional electret (gold-plated microphone core)

Frequency response

80Hz~16KHz

Microphone input impedance

1KΩ

Sensitivity

-40±1dB (0dB=1V/Pa,at 1KHz)

Maximum SPL

120dB

Signal-to-noise ratio

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

< 0.1 %

Maximum power consumption

2 W

Power supply

21700 lithium battery power supply

Charging method

Connect the charging box to charge via the Type-C interface

Color

Graphite gray

Sign-in function

Sign-in via physical silicone button

Display

LCD screen

Installation

Desktop

Wireless frequency range

5.15~5.85GHz

Battery capacity

9400mAh

Working time in speech mode

12 hours

Mic rod size

240mm

Base size (L×W×H)

105 × 126 × 54 mm

Weight

0.825 Kg
