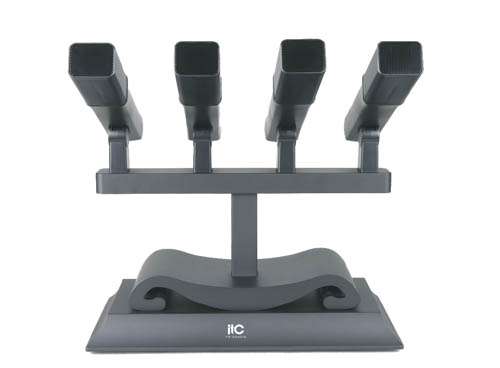

TS-0304 Full Digital Conference System Chairman Unit

The Details Related Solution Related Cases Related Video Download


Feature:


* The microphone unit has a digital-analog dual backup function, supporting seamless switching between the digital transmission link and the analog backup link. When the digital transmission link is interrupted, it automatically switches to the analog audio link. There is no lag or dropped words during the switching process, ensuring the stable progress of the meeting.

*  The microphone is equipped with dual indicator lights for digital and analog link switches. The indicator light is blue when the analog link is on, and the indicator light is red when the digital link is on.

* POE switch power supply, uncompressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth, perfect sound quality.

* Phantom power supply, ,perfect sound quality.

* Capacitive touch buttons can ensure no button knocking noise and a good venue environment.

* The microphone unit uses 100M network transmission and connects to the server through a POE switch. Long-distance transmission will not have any impact on the sound quality.

* Support microphone control and voice control function through PC software.

* The chairman unit has the priority right to turn off the speaking delegate unit.

* Support TCP/IP protocol cluster, support multiple protocols such as ICMP, HTTP, UDP, TCP, and IGMP.

* Support the PING package function.

* Each microphone unit has an independent web control page. Support four language switching, adjustment of microphone ID number, microphone sensitivity, microphone EQ and other parameters.

* Support feedback suppression function, voice control function, and adjustable voice control sensitivity.

* Support 5-band EQ adjustment function, adjust sound effects according to the voice characteristics of different speaker to achieve the perfect effect.

* Support sign-in function. You can also disable and control the unit sign-in, and other functions through the PC software.

* Support firmware upgrade function on the web page.

* Support the IP address sniffing function; the ID number, IP address and MAC address of unknown units can be found by PC software.


Specification:


Model

TS-0304

Microphone type

Electret capacitor

Microphone directivity

Cardioid pattern

Frequency response

80Hz~16KHz

Microphone input impedance

1KΩ

Sensitivity

-40±1dB (0dB=1V/Pa,at 1KHz)

Maximum SPL

120dB(THD>3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

<0.1%

Maximum power consumption

2.5W

Power supply

POE power supply / phantom power 48V

Color

Gray

Sign-in function

Key sign in

Dimension

240×134×105mm (including microphone pole)

Installation method

Desktop

Weight

0.94kg
