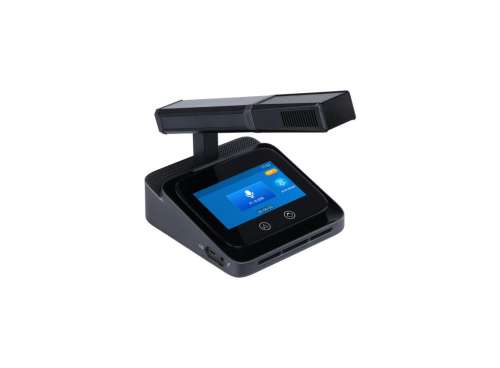

TS-W301D/ TS-W301DA Conference Chairman/Delegate Unit

The Details Related Solution Related Cases Related Video Download



Feature:


* 48KHz sampling rate, clear and bright sound.

* Using advanced processing chip architecture and unique processing algorithm, the microphone power-on connection time only takes 5 seconds.

* Support intelligent detection of faults, prompting users of AP faults, host communication faults, and low signal strength.

* Support Chinese and English language switching, and uniformly set through PC software.

* Support the function of speech timekeeping and speech countdown.

* With voice control function, the microphone can be turned on intelligently. Support adjusting the voice control sensitivity and setting the closing time through PC software.

* Support sign-in function, set and initiate through PC software.

* Adopt 128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access, and provide higher confidentiality of the conference system.

* Using wireless transmission technology, venue activities can be carried out with very little time for venue layout.

* The chairman has a priority function that turns off all delegate microphones that are speaking.

* It comes standard with 6 high-capacity lithium batteries, with a battery capacity of 14400mA/h. The battery capacity supports 17 hours of continuous speech or up to 24 hours of continuous work.

* A 4.3-inch capacitive touch display can display information such as microphone on/off, ID setting, battery level, signal strength, etc.

* Support clock display function, including date and time: year, month, day, hour, minute.

* Support up to 18W fast charging protocol input, and it can be charged in about 5 hours with a fast charging.


Specification :


Model

TS-W301D

TS-W301DA

Microphone type

Cardioid directional electret microphone

Frequency response

80Hz~16KHz

Sensitivity

-40±1dB(0dB=1V/Pa,at1KHz)

SNR

>80dB(A)

Dynamic range

>80dB

THD

<0.03%

Maximum power consumption

3W

Standard

IEC60914

Power supply

18650 lithium battery

Colour

Black

Sign-in function

Key sign in

Display screen

4.3 inch LCD capacitive touch screen

Dimension

136×140×48.5mm(without Mic rod  )

Installation method

Desktop

Wireless frequency range

5.15-5.85GHz

Battery capacity

14400mAh

Weight

1.4kg

Working hour in speech mode

17 hours

Working hour in mixed mode

17 hours

Microphone pole

240mm
