Description:
It is used in mobile performances, small and medium clubs, auditoriums, banquet halls, multipurpose halls and various high-end occasions.
Feature:
* Adopt one 12-inch woofer and eight 3.5-inch mid tweeters.
* The woofer is made of 15mm birch plywood; the column speaker is made of 9mm birch plywood; the surface is sand-sprayed, wear-resistant and high-grade.

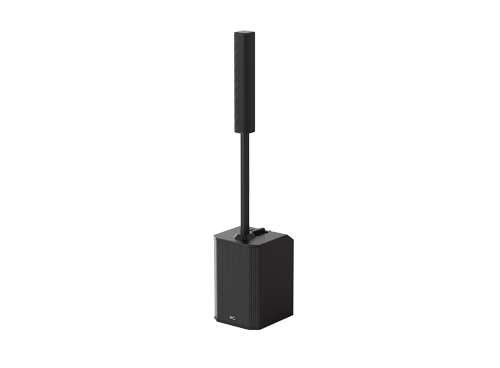

* Active portable linear array speaker system contains powerful sound effect, portability, easy installation, high sound pressure level and a wide low frequency range.
* The integrated woofer adopts a band-pass dual inverted design to provide the powerful bass effect; the mid tweeter adopts a phase plug line sound source design, while avoiding the bulky shape.
Specification:
|
Model |
KS-12A35 |
|
Rated power |
600W+600W |
|
Peak power |
24 00W+ 24 00W |
|
Crossover frequency |
4th/200Hz, DSP electronic frequency division |
|
Frequency range |
40Hz-20KHz |
|
Input port |
2 XLR multi-function jack inputs, 1 stereo RCA input, 1 Bluetooth input, 1 XLR output |
|
Function |
Support low frequency boost, Bluetooth support TWS, support one-key noise reduction |
|
Maximum SPL (rated/peak) |
122dB/128dB |
|
Voltage input |
AC 220V 50Hz-60Hz |
|
Coverage |
140° (H) 40° (V) |
|
Woofer |
12" × 1 |
|
Mid tweeter |
3.5" × 8 |
|
Net weight |
25.5kg |
|
Dimension (H×W×D) |
Woofer: 625×365×450mm Column speaker: 800×103×180mm Support rod: 800×35×50mm |
|
Total height |
2000mm |
