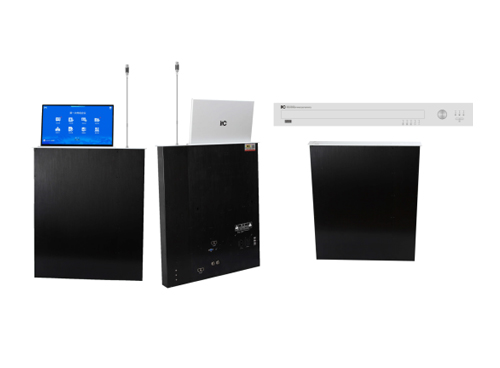

TS-F173MT Paperless Lifter (paperless ultra-thin 17.3-inch capacitive LCD screen with microphone lifter, intelligent elevation adjustable 30 degrees)

The Details Related Solution Related Cases Related Video Download


Description

The product use intelligent control technology, take intelligent terminal as application concept, adopt original guide rail design, one key operation can automatically complete starting, LCD screen up, elevation and other actions, beautiful desktop, space-saving as the purpose, easy to use. With anti-theft, anti-dust, beautify desktop and other function. Can be widely used in conference, office hotel, teaching studio and other occasion, to meet the customer systems development diversity, and office automation environment demand. It is one ideal assistant of your office and teaching.


Features

* touch ultra-thin HD display and lifter integrated design, no exposed cable, no connection backplane, no exposed screws, ensure a nice overall appearance of touch display screen.

*Built in an elevating microphone, microphone up and down with automatic straightening function, when MIC bending, it will be automatically straightening when machine close, won’t be damaged.

* Equipment use all-aluminum structure, high-quality aluminum with CNC carved processing, display frame and chassis are made of aluminum alloy, to make equipment refined, lightweight, beautiful.

* Equipment surface treatment is anodized, bright color.

* Equipment panel thickness of only 3mm, width of only 70mm, small footprint.

* Adopt imported steel wire, cooperated with high precision guide rail and linear bearing, AC geared motor as driving force, reduce noise to minimum.

* 15.6-inch ultra-thin LCD touch screen display, resolution up to 1920*1080P, clear and bright display, adjustable backlight design, to prevent fatigue caused by too bright or too dark.

* Support HDMI and VGA two channel signal input, when there is only one signal input, the screen will automatically recognize this signal, when these two signal input at the same time, can be manually switched from panel key, when no signal input, the screen will automatically enter into power saving mode.

* The device can be centrally controlled through central control software, can be controlled by the host computer, one key can make all device in the room go up or down.

* Built-in loop-through output power outlet, can power supply to the terminal to reduce terminal power outlet wiring, make project site wiring more neat and beautiful.


Product Model TS-F173MT
Power Consumption TS-F173MT
Loop Through Output Power 12Kg
Video Interface 700:1
Contrast 89/89/89/89 (Typ.)
Backlight Type 300cd/㎡
Screen Ratio VGA, HDMI
Screen Resolution WLED, 15K hours, with LED driver
Environmental Condition 16:9
586×60×519mm
Panel Sink Size -20℃~50℃, related humidity ≤70%
Screen Size 1920×1080
Lifter Window Size 586×60mm (suggest physical device with hole)
Desktop Hole Size 601×70×3mm (L×W×T) (suggest physical device with hole)
Chassis Dimension 601×70×3mm
Panel Dimension 434.5×21.5mm
Elevation Angle 0-30° Fully comply with ergonomic, without blocking view and face
Touch Screen support
Lifting Time 28S
Brightness 10mm
Viewing Angle AC 220V 50-60/HZ
Display Thickness AC 220V 50-60/HZ
Power Supply >25W
Total Weight support
