Description:

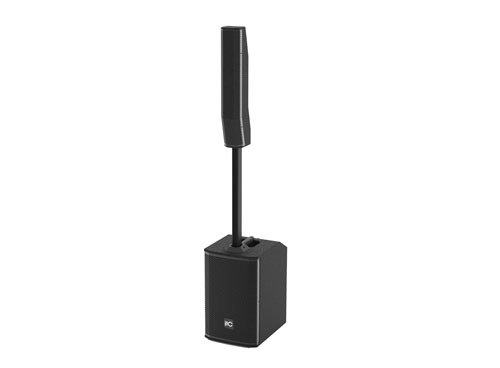

1. The woofer utilizes one 10" woofer with a unique bass reflex design, delivering fuller bass response despite its compact size. The mid treble employs four 3.5" mid-high drivers with a phase-plug waveguide design, featuring low distortion and fast transient response.

2. Leveraging the principle of waveguide diffraction steering, it achieves differentiated directivity characteristics with an ultra-wide 140° horizontal coverage and a narrow 50° vertical beam focusing. The multi-driver array arrangement optimizes acoustic coupling efficiency, effectively enhancing far-field sound projection capability. The system delivers a maximum SPL of 124dB with no significant sound attenuation over long-distance projection.

3. Professionally designed aluminum alloy connecting poles and integrated cable assemblies are provided, with a user-friendly pole-mounting design that allows insertion in either direction for quick and effortless setup.

4. The built-in amplifier module employs DSP-powered active crossover technology, supporting low-frequency response adjustment, one-touch noise reduction, and other functions. Inputs include two XLR combo jacks, one stereo RCA input, one Bluetooth input, and one XLR output.

5. Wireless control via smartphone is supported, enabling stereo linking for expanded coverage.

6. Suitable for a wide range of applications including mobile performance events, small to medium-sized clubs, auditoriums, banquet halls, multi-functional venues, and various high-end installation scenarios.

Technical parameters:
