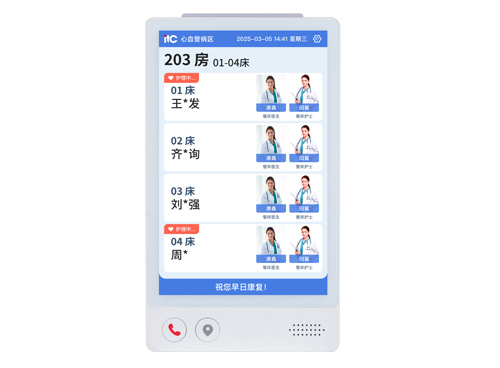

The ward extension uses a capacitive touch screen and is installed at the door of the ward. It is used to display the basic information of the patients in the ward, the bed usage of the ward, receive all call reminders in the ward, receive notification messages, and call the nurse station through the ward extension.
* It supports displaying ward bed previews, and can display basic information such as current date and time, room number, bed number, patient name, etc.
* It supports displaying the name of the room's attending nurse and the name of the attending doctor, and can also view the photos of the room's attending nurse and the photo of the attending doctor.
* It supports displaying bed call information in the room. When the extension calls, the incoming call status and patient information will be displayed synchronously on the ward door machine and the nursing screen of the nurse station, and "XX bed calling" will be displayed.
* Supports displaying call and alarm information reminders of all wards in the ward.
* Supports playing ward slogans and emergency notices issued by the background management system.
Screen size
10.1-inch IPS HD screen
Resolution
1280 × 800
Screen ratio
16:9
Display area
136 × 217mm
Touchscreen
Capacitive touch
Operating system
Linux
Processor
ARM9 architecture, main frequency 800MHz
Memory
64M
Storage
256M
Audio decoding format
PCMA
Device buttons
Hang up and nursing
Door light
Red , green and blue door lights
Network communication
1×RJ45 network interface, 10M-100M LAN adaptive
Device interface
The handle has 5-pin wiring port, and the 6-pin port is for two-way alarm input +12V, alarm power supply +RS-485
Speaker
8Ω×1W, mono
Maximum power consumption
5W
Standby power consumption
1.5W
Working current
380 mA
Operating temperature
-10℃~+55℃
Operating humidity
20%~80%
Operating voltage
DC12-15V
Power supply
POE or DC 12V
Body material
ABS
Installation
Embedded installation
Dimensions (W × D × H)
161.5×22× 2 80 .5 mm
Weight
556g
