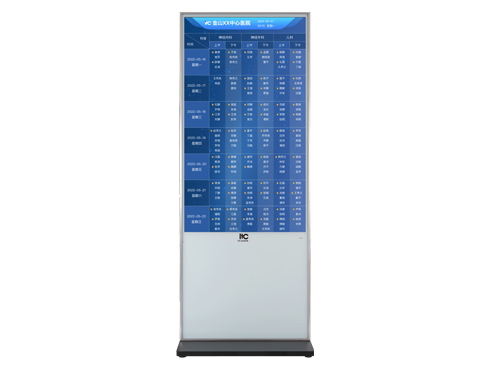

Vertical all-in-one machines are used in medical places and are usually installed in halls or corridors . They can display information about experts, doctor schedules, and mail.
* Supports displaying doctors’ schedule and experts’ schedule.
* Supports information publishing (supports videos, documents, pictures, etc.), and can be scheduled, inserted into program lists, etc.
* Support background remote upgrade.
* The background supports adjusting the volume of the device calling voice and taking remote screenshots of the display interface.
* Support setting any time period for scheduled power on and off.
* Support log viewing function.
* Supports replacement of display templates, and can customize template styles according to the on-site environment.
|
Screen size |
43 inches |
|
Resolution |
1920 × 1080 |
|
Screen ratio |
16:9 |
|
Display size |
941 × 529mm |
|
Brightness |
300 cd /㎡ |
|
Contrast |
1 200 :1 |
|
Viewing angle |
178° |
|
Refresh rate |
120HZ |
|
Touch |
10-point infrared touch |
|
Backlight life |
50000Hrs |
|
Glass hardness |
Explosion-proof tempered glass, Mohs 7 hardness |
|
Processor |
Quad-core, main frequency 2.0GHz |
|
Running memory |
2 GB DDR4 |
|
System memory |
32 GB |
|
operating system |
Android 11 |
|
Built-in speaker |
5 W × 2(8 Ω) |
|
Device interface |
USB×2; HDMI×1; 3.5mm×1; TF card slot×1; RS232×1 |
|
Network input (10/100M) |
RJ45×1 |
|
2.4G WIFI |
support |
|
Power supply mode |
100-240V |
|
Operating power consumption |
＜ 180W |
|
Standby power consumption |
＜0.5W |
|
Operating temperature |
0～40°C |
|
Operating humidity |
20%～85%RH, no condensation |
|
Overall dimensions ( W× D ×H ) |
610.6×450×1787mm |
|
Net weight |
36.5kg |
