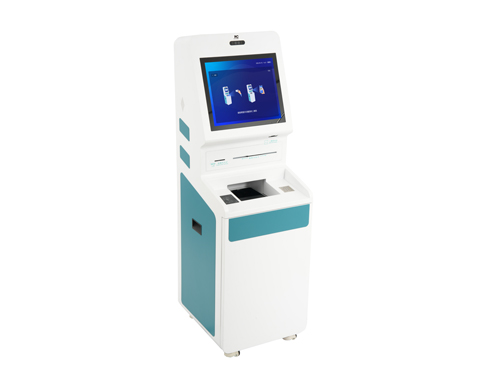

The self-service report terminal is an intelligent equipment used in hospitals for the self-printing of examination, inspection, and physical examination reports. It allows for identification and printing of reports using ID cards, medical consultation cards, or QR codes (such as consultation number and medical record number). With intelligent management, it effectively improves medical service efficiency and patient satisfaction.
* Equipped with a 19-inch high-definition capacitive touch screen, supports Windows operating system and multi-touch interactive operation.
* It supports identification of the second-generation ID card by placing it on the card sensing area of the self-service machine. It also supports identity verification via swiping the ID card, medical consultation card, or scanning a QR code for self-service printing of reports.
* Supports self-service printing of inspection, examination and physical examination reports, and printing on A4 and A5 paper.
* Features a metal encrypted keyboard with 10 numeric keys and 6 function keys, offering protection against water, dust, impact, drill (intrusion), tampering, leakage, eavesdropping, and replacement.
* Supports querying report information within 60 days by entering ID card or consultation card number on the keyboard.
* Supports remote software upgrades via the backend, allows setting specific time periods for scheduled power on/off, and includes log viewing functionality.
|
Operating system |
Windows operating system |
|
Processor |
Dual-core 3.6 GHz |
|
Memory |
4GB |
|
Hard disk |
128GB SSD Hard Drive |
|
LCD size |
19 inches |
|
Display area |
376.32 (H)×301.056 (V) |
|
Display resolution |
1280×1024 |
|
Screen ratio |
4:3 |
|
Panel brightness |
280 cd/m2 |
|
Viewing angle |
Full view |
|
Display color |
16.7M |
|
Contrast |
1200:1 |
|
Touch embedding method |
Integrated G+G capacitor |
|
Touch sensing technology |
20-point capacitive touch |
|
Writing method |
Finger, capacitive touch pen |
|
Touch response speed |
≤10ms |
|
Positioning accuracy |
±2mm |
|
Communication interface |
USB Type B Male |
|
Touch life times |
≥50 million times |
|
Social security multi-function module |
Support Chinese second-generation resident ID card Support Hong Kong, Macao and Taiwan residence permits Magnetic stripe card: 1/2/3 track magnetic reading, two-way card swiping, single-sided card swiping Contact IC card: Supports the operation of CPU cards with T=0 and T=1 that comply with the IS0 7816 standard × CPU card in T=0/T=1 mode × Various contact memory cards and logic encryption cards from ATMEL, SIEMENS, ISSI, Fudan and other companies: AT24C01A\16\64, AT88SC1604\1608\153, SLE4442, SLE4428 Contactless card: Supports standard contactless card types that comply with IS0 14443 Type A/B Mifare, with a maximum card reading distance of no less than 5cm |
|
HD camera |
Physical pixels; HD-1080P-200W Lens 1: 3.9 mm color, Lens 2: 3.9 mm black and white Best shooting distance: 20CM-300CM Field of view: 65°±5° Dynamic range: 96db Aperture/Distortion: F2.0/<1% Support: YUY2, MJPG |
|
2D scanning module |
Image size: 640×480 Pixel motion tolerance: 100mm/s (4in/s) Scanning angle: horizontal 38°, vertical 29°, tilt angle t45°, depression angle T45° Lighting: White LED |
|
Laser printer |
Product type: black and white laser printer Standard memory : 128M Interface type: USB 2.0 interface Operation panel: LCD display panel First page output time: ≤6.9s Black and white printing speed: ≥38ppm Maximum printing size: A4 Print resolution: ≥4800×600dpi |
|
Metal encryption keyboard |
Input keyboard: 10 numeric keys, 6 function keys Protection capability: Sensitive data can be stored for more than 5 years in case of power outage Safety features: protection against water, dust, impact, drill (intrusion), tampering, leakage, eavesdropping, and replacement. Communication interface: standard RS-232 and standard USB 2.0 Key life: more than 2 million times Algorithm: Support DES, Triple DES and 2048bit RSA Material: Stainless steel Security performance: keys, programs and sensitive data will self-destruct after unpacking Key travel: not less than 0.45mm Processing capabilities: PIN encryption, MAC calculation, data encryption/decryption Key surface characters: Etched concave or convex characters Compliant standards: ISO9564, IBM3624, ANSIX9.9, ANSIX9.19 Communication interface: RS-232+P/S |
|
USB interface |
USB2.0×2 |
|
Communication interface |
RJ45×1, 100M/1000M adaptive |
|
Illuminated reset switch |
1 |
|
Power switch |
1 |
|
Maximum power consumption rate |
≤300W |
|
Standby power |
≤0.5W |
|
Input power |
AC 220V |
|
Workplace |
Indoor |
|
Operating temperature |
0 ℃ - 40 ℃ |
|
Operating humidity |
10% - 90% non-condensing |
|
Storage temperature |
-20 ℃ - 60 ℃ |
|
Storage humidity |
10% - 90% non-condensing |
|
Dimensions ( width x depth x height ) |
502.8×550×1590.88 mm |
|
Weight |
144 kg |
