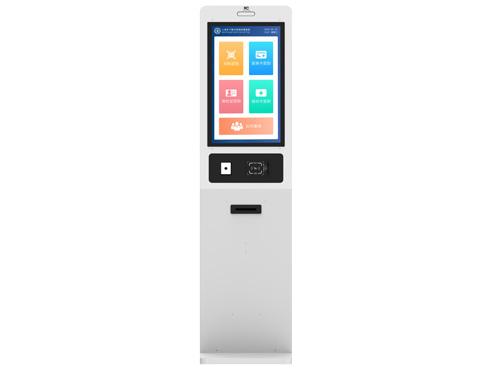

The floor-standing registration machine is installed in the waiting area of the triage nurse station, allowing patients to self-register by verifying their identity card, medical insurance card, medical consultation card, and other manners. This process reduces waiting times at the registration window. It is widely used in various medical institutions, such as outpatient clinics, medical technology departments, physical examinations, and prescription collection areas, for queue management and sign-in.
* Equipped with a 21.5-inch high-definition capacitive touchscreen and running on the Android operating system, it supports multi-touch interactive operations.
* Supports the identification of the second-generation ID card by placing it on the card sensing area of the self-service machine, as well as self-service check-in through identity verification via ID card swiping, medical consultation card swiping, or QR code scanning.
* Supports viewing the number of people in the waiting queue and printing number receipts after registration.
* Supports remote software upgrades via the backend, allows setting specific time periods for scheduled power on/off, and includes log viewing functionality.
|
Operating system |
Android 11 |
|
Processor |
Quad-core 2.0GHz |
|
Running memory |
2 GB |
|
Storage memory |
16 GB |
|
Display size |
21.5 inches |
|
Display type |
LED LCD display |
|
Resolution |
1080×1920 |
|
Screen ratio |
9:16 |
|
Screen display size |
476.64 × 268.11 (H×V) mm |
|
Brightness |
280cd/m2 |
|
Contrast |
1000:1 |
|
Viewing angle |
89°/89°/89°/89° |
|
Display color |
16.7M 98% sRGB |
|
Display screen protection |
4mm fully tempered high explosion-proof |
|
Touch embedding method |
Integrated G+G capacitor |
|
Touch sensing technology |
20-point capacitive touch |
|
Writing method |
Finger, capacitive touch pen |
|
Touch response speed |
≤10ms |
|
Positioning accuracy |
±2mm |
|
Communication interface |
USB type B male |
|
Communication interface |
Integrated 100m ethernet controller |
|
Touch life times |
≥50 million times |
|
2D scanning module |
Image size: 640×480 Pixel motion tolerance: 100mm/s (4in/s) Scanning angle: Horizontal 38°, vertical 29°, tilt angle t45°, depression angle T45° Lighting: White LED |
|
Id card reader + IC |
It complies with the ministry of public security's "GA450-2013 general technical requirements for desktop resident identity card readers" and is compatible with the ISO-I4443 {TYPE-B} standard. Working frequency: 13.56MHZ (FC) Reading distance: 0-5CM Reading time: ≤ 1s |
|
Thermal receipt printer |
Line thermal printing resolution: 203dpi Paper cutting method: Half cutting Printing speed 260mm/s Print length: Up to 50 km Print width: 72mm Print cutter life: Greater than or equal to 1 million times Paper feeding method: Automatic paper suction Identification detection: Support black mark positioning |
|
Interface |
USB × 2 , MIC+audio port × 1 , RJ45 × 1 |
|
Wifi |
Universal 2.4G UHF + bluetooth 4.0 |
|
Speaker |
3W/8ω × 2 |
|
Input power |
AC 220V |
|
Maximum power consumption rate |
≤85W |
|
Standby power |
≤0.5W |
|
Workplace |
Indoor |
|
Operating temperature |
0 ℃ - 40 ℃ |
|
Operating humidity |
10% - 90% non-condensing |
|
Storage temperature |
-20 ℃ - 60 ℃ |
|
Storage humidity |
10% - 90% non-condensing |
|
Net weight |
30 kg |
|
Gross weight |
35 kg |
|
Dimensions (width x depth x height) |
380×450×1588.67mm |
|
Installation |
Floor-standing |
