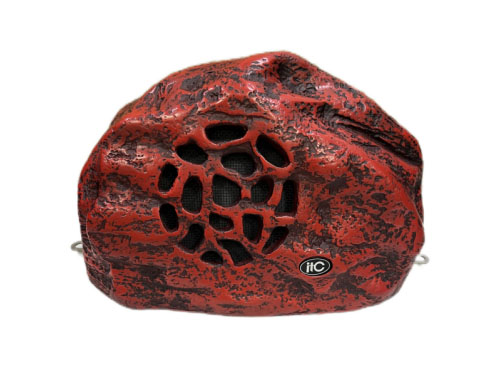

PA-300SG Landscape Garden Speaker

The Details Related Solution Related Cases Related Video Download


Specifications:


Model

PA - 300SG

Power(100V)

7.5W/15W

Power(70V)

3.8W/7.5W

Frequency response

80Hz -20KHz

Sensitivity

90dB

Maximum sound pressure level

105dB

Speaker unit

5″

Installation dimensions (mm)

3 30mm

Weight

2.6kg

Product dimensions (mm)

312x203x192mm

Impedance

Black:COM,White:1.3KΩ,Green:670Ω

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/4411.html
Related Products

T-1910S Landscape Garden Speaker

 PA - 300ST.jpg

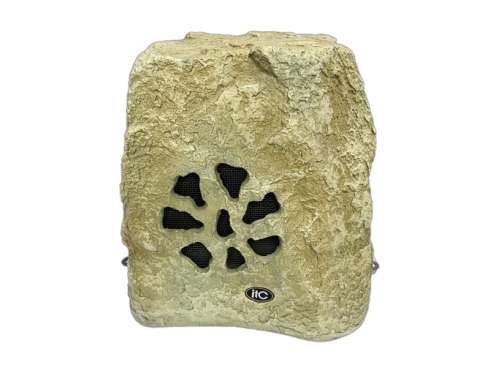

PA-300ST Landscape Garden Speaker

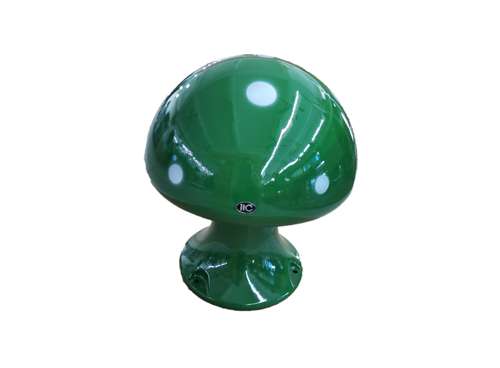

T-500H Landscape Garden Speaker
