Description:

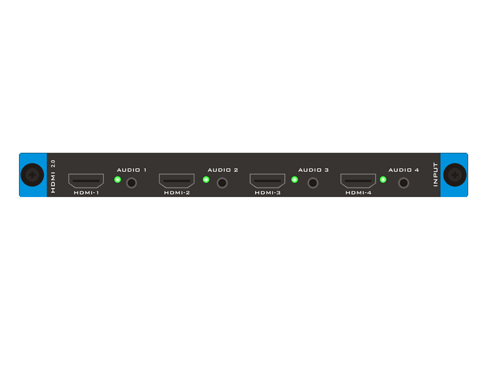

The plug-in input card is used with the centralized controller to realize 4-channel HDMI image input with resolution of 4096×2160@30Hz and below and 4-channel analog audio input function.
Features:
* Support 4-channel HDMI1.4 format image input function;
* Support 4-channel analog audio input function.
Specification:
|
HDMI input |
4×HDMI socket |
|
Indicator light |
4×green LED lights for HDMI insertion indication |
|
Audio |
4× 3.5mm audio socket, audio input interface |
|
Ambient temperature |
0℃—+45℃ |
|
Environment humidity |
10%-80% |
|
Power supply |
DC 12V |
|
Rated power |
9W |
|
Dimensions (L×W×H) |
233mm×202.8mm×19.7mm |
|
Weight |
0.35Kg |
