Description:

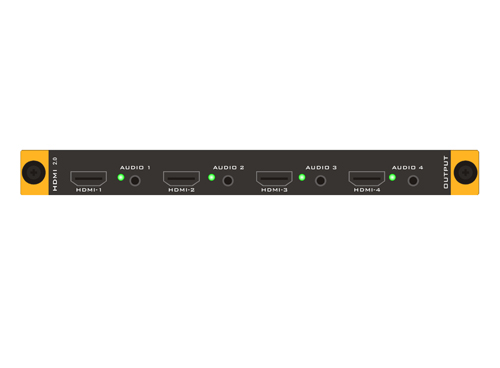

The plug-in output card is used with a centralized controller to realize 4-channel HDMI image output and 4-channel analog audio output with resolutions of 4096×2160@30Hz and below.
Features:
* Support 4-channel HDMI1.4 format image output function;
* Support 4-channel analog audio output function.
Specification:
|
HDMI output |
4×HDMI socket |
|
Indicator light |
4×green LED indicators for connection indication |
|
Audio |
4×3.5mm audio socket for audio output |
|
Ambient temperature |
0℃—+45℃ |
|
Environment humidity |
10%-80% |
|
Power supply |
DC 12V |
|
Rated power |
10W |
|
Dimensions (L×W×H) |
233mm×202.8mm×19.7mm |
|
Weight |
0.35Kg |
