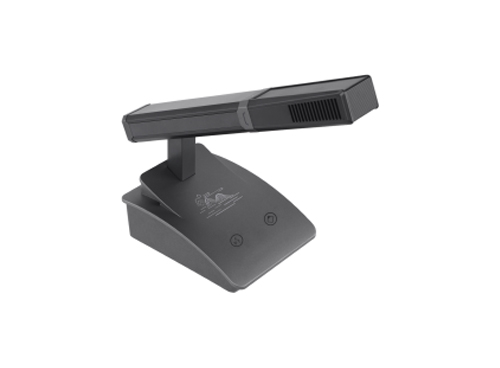

TS-0304E/ TS-0304EA Conference Chairman/ Delegate Unit

The Details Related Solution Related Cases Related Video Download



Feature:


* Adopt digital transmission link, POE switch power supply, uncompressed audio transmission technology, 48k sampling rate, 80Hz-16kHz bandwidth, perfect sound quality.

* Support phantom power supply.

* The use of capacitive touch buttons can effectively eliminate the button tapping noise and ensure a good venue environment.

* Adopt 100M network transmission, connect with the host through a POE switch; long-distance transmission will not have any impact on sound quality.

* Support microphone control via PC software, support voice control function.

* The chairman unit has the priority to turn off the delegate unit that is speaking.

* With TCP/IP protocol suite, it supports ICMP, HTTP, UDP, TCP, IGMP and other protocols.

* Support PING package function.

* Designed with an independent web control page, it supports four language switching, and the adjustment of microphone ID, microphone sensitivity, microphone EQ and other parameters.

* Support speech timekeeping and speech countdown functions.

* Support internal feedback suppression and voice control function, and the voice control sensitivity is adjustable.

* With 5-band EQ adjustment function, the sound effect can be adjusted according to the sound characteristics of different speakers until the perfect effect is achieved.

* Support the sign-in function, and support functions such as prohibiting unit sign-in and controlling unit sign-in through the PC software.

* Support web page firmware upgrade function.

* Support IP address sniffing function; the ID number, IP address, MAC address and other parameters of unknown units can be found through PC tools.


Specification:



Model

TS-0304E

Microphone type

Electret Condenser Microphone

Microphone directivity

Cardioid

Frequency response

80Hz~16kHz

Input impedance

1KΩ

Sensitivity

-40±1dB (0dB=1V/Pa, at1KHz)

Max SPL

120dB(THD>3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

<0.1%

Maximum power consumption

2.5W

Power supply

POE power supply / phantom power 48V

Color

Gray

Sign-in function

Button sign in

Dimension (L×W×H)

106*136*59mm (excluding the mic pole)

Mic pole length

240mm

Installation method

Desktop installation

Weight

0.94kg
