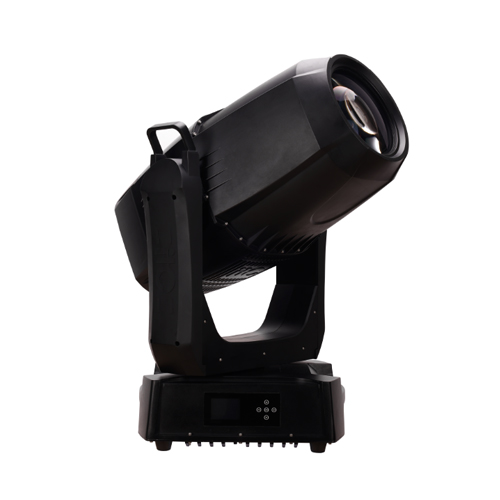

TL-LT887 1000W Moving Head Light

The Details Related Solution Related Cases Related Video Download


Feature:


* Color mixing system: CMY+CTO color mixing system stepless color change.

* Color wheel: 1 color wheel: 6 color gels + white light, half-color effect, arbitrary positioning, rainbow effect with bidirectional rotation function.

* Fixed plug-in gobo wheel: 7 gobos, 1 white light, adjustable speed, arbitrary positioning function.

* Rotating gobo wheel: 6 replaceable gobos + white light, bidirectional rotation and positioning function.

* Pattern cutting system: Including triangles, squares, parallelograms, semi-circles; the cutting pattern supports 90° bidirectional rotation and arbitrary positioning function according to the scene.

* Focusing: Adjustable linear focusing.

* Prism: A triangular prism, bidirectional rotation and positioning function.

* Zoom: 10× zoom 5-50°.

* Atomization: 1 atomization wheel.

* Scanning range: X-axis 540~630°/5 S, Y-axis 250°/3 S, precise scanning positioning, non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory.

* Display interface: Touch buttons, 2.4-inch LCD display interface in Chinese and English, with rechargeable battery, you can enter the menu to set the address code and perform other settings without powering on.

* Intelligent heat dissipation: Using wind direction drainage and intelligent temperature monitoring technology, built-in NTC temperature control function, when the LED is overheated, the output power of the LED is intelligently reduced.

* Aperture function: Zoom in and zoom out dynamic effects.

* Lightning protection electronic control technology: Built-in enhanced lightning surge protection module.


Specification:


Model

TL-LT887

Input voltage

AC110V-240V 50/60Hz, 1380W

LED light source

High power 1000W white LED

Average lifespan

>20000H

Color temperature

6500K

Beam angle

5~53°

Control mode

DMX512 protocol, support RDM protocol and program online update function, support Art-net Ethernet data interface (DMX wireless function optional)

Channel

16/34 channels

Fixture material

Outdoor high temperature plastic + die-casting aluminum alloy material

Protection class

IP66

Fixture size (L×W×H)

504×381×886mm

Flight case size (L×W×H)

704×548×966mm

Gross weight

103kg

Net weight

63kg
