Feature:
* Color: 5 color gobos + white light, two-way stepless rotation, magnet positioning, color index, half-color and other functions.
* Pattern panel: a rotating pattern panel with 4 patterns; support the effects of pattern positioning, rotation, dithering, etc.
* Dimming: 0-100% linear adjustment.
* Strobe: electronic strobe, 0-25 times/sec (built-in pulse stroboscopic effect).
* DMX512 port program update, convenient and fast software upgrade through DMX data cable
* Over-temperature protection function: built-in NTC temperature control function. When the LED is overheated, the output power will be intelligently reduced.
* LCD blue screen display. The lamp usage time, software version number and others are displayed.
Specification:
|

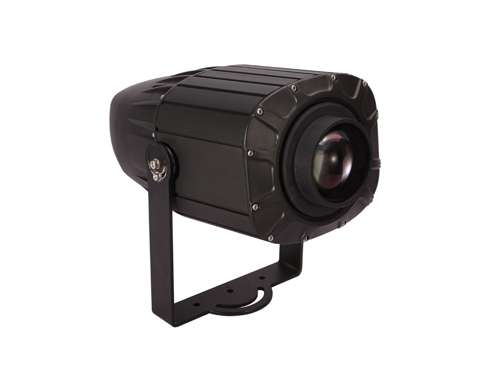

Model |
TL-LT201A |
|
Input voltage |
AC 110-240V 50/60Hz, 170W |
|
Light source |
A 150W White Light LED OSRAM chip |
|
Average lifespan |
50000H |
|
Color temperature |
7500K |
|
Beam angle |
30°/45°/60° /75°(optional) |
|
Control mode |
Comply with the international standard DMX512 signal control protocol, 3-core (5-core optional) DMX512 signal interface; master-slave synchronous control mode, support RDM protocol and program online update function |
|
Operation mode |
DMX mode, user program mode, built-in program mode |
|
Channel |
7/9 channels |
|
Fixture material |
High-strength die-cast aluminum alloy + copper tube radiator + a waterproof fan to assist heat dissipation |
|
Protection level |
Protection IP67 |
|
Working temperature |
-20℃～45 ℃ |
|
Fixture size (L×W×H) |
230*180*367mm |
|
Package size (L×W×H) |
270*250*455mm |
|
Gross weight |
10.2kg |
|
Net weight |
8.0kg |
