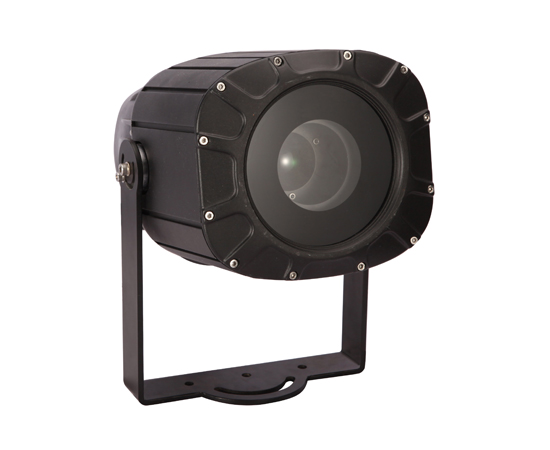

TL-LT108 80W Water Effect Light

The Details Related Solution Related Cases Related Video Download


Feature:


* Color: one 5+1 fixed color panel, two-way stepless rotation, magnet positioning, color index, half-color and other functions.

* Function: 2 water pattern panels, independent rotation, forward and backward stepless rotation.

* Electric focusing, the spot can show various water ripple effects with the focal length changing.

* Dimming: 0-100% linear adjustment.

* Strobe: electronic strobe, 0-25 times/sec (built-in pulse stroboscopic effect).

* DMX512 port program update, convenient and fast software update via DMX data cable.

* Over-temperature protection function: built-in NTC temperature control function; when the LED is overheated, the output power will be intelligently reduced.

* LCD blue screen display. The lamp usage time, software version number and others are displayed.


Specification:


Model

TL-LT108

Input voltage

AC 110-240V 50/60Hz, 100W

Light source

One 80W white light LED OSRAM chip

Average lifespan

50000H

Color temperature

7500K

Beam angle

25°/45°/70°(optional)

Control mode

Comply with the international standard DMX512 signal control protocol, 3-core (5-core optional) DMX512 signal interface; master-slave synchronous control mode, support RDM protocol and program online update function

Operation mode

DMX mode, user program mode, built-in program mode

Channel

7 channels

Fixture material

High-strength die-cast aluminum alloy + copper tube radiator + 1 waterproof fan to assist heat dissipation

Protection level

Protection IP67

Working temperature

-20℃~45

Fixture size (L×W×H)

230×180×367mm

Package size (L×W×H)

270×250×455mm

Gross weight

10.0kg

Net weight

7.5kg
