TS-FE173T Motorized Paperless Interactive Monitor Lift

The Details Related Solution Related Cases Related Video Download



Motorized Paperless Dual-screen Interactive Monitor Lift TS-FE173T

Embedded software: paperless conference terminal client software V2.0



null
null




Description:

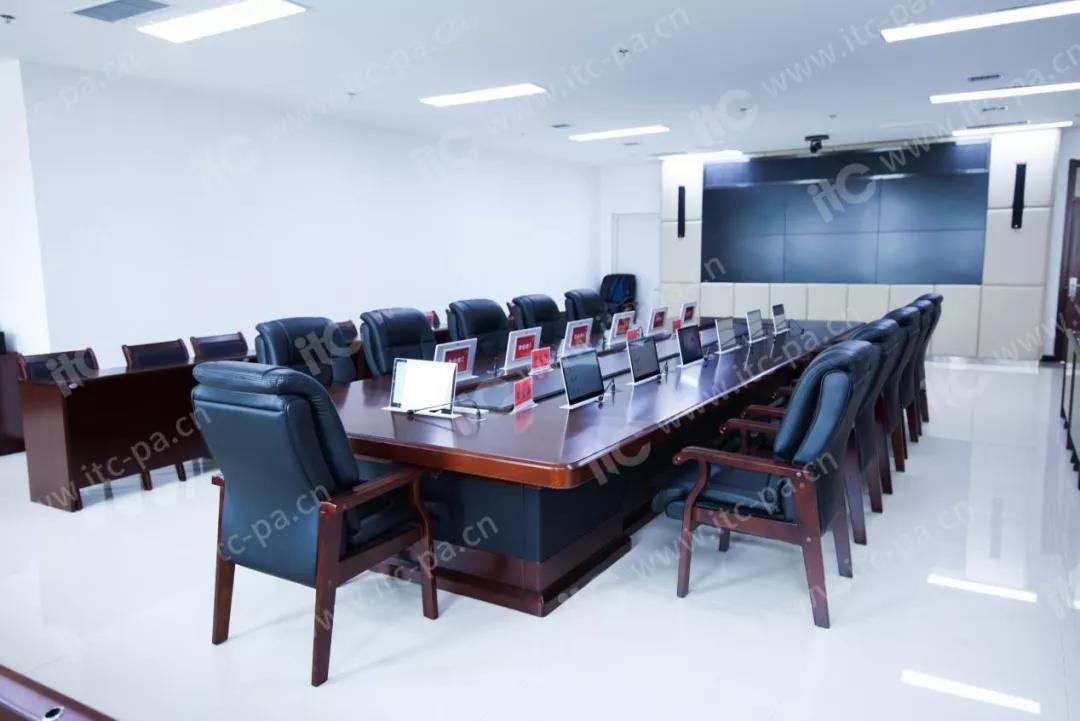

The product uses intelligent control technology, takes intelligent terminal as application concept, adopts original guide rail design. One-key operation can automatically complete starting, LCD screen up, elevation and other actions. The desktop is both beautiful and elegant with space-saving as the purpose. It is very convenient to use. With anti-theft, anti-dust, beautify desktop and other function. It can be widely used in conference, office hotel, teaching studio and other occasion to meet the demands of customer systems development diversity and office automation environment . It is one ideal assistant of your office and teaching.



Features:


1. With ultra-thin HD touch screen and lifter integrated design, no exposed cable, no connection backboard, no exposed screws, it ensures an overall beautiful and elegant appearance of touch display screen.

2. Adopt fully aluminum structure, high-quality aluminum and CNC processing. The aluminum-alloy structure and case make the equipment exquisite, light, beautiful and elegant

3.  Equipment surface treatment is anodized, bright color.

4. Equipment panel thickness of only 3mm, width of only 70mm, small footprint.

5.  Adopt imported steel wire with high precision guide rail and linear bearing, and using AC geared motor as driving force, it reduces noise to minimum.

6. Paperless ultra-thin 17.3-inch capacitive LCD screen lifter with resolution up to 1920*1080P, rear 11.6 inch electronic nameplate, integrated double-sided LCD display;. The display is clear and bright, and the backlight design can be adjusted to prevent fatigue from being too bright or too dark.

7. Support HDMI and VGA two channel signal inputs. When there is only one signal input, the screen will automatically recognize this signal. When these two signals input at the same time, they can be manually switched from panel key. When no signal inputs, the screen will automatically enter into power saving mode.

8. The device can be centrally controlled through central control software, can be controlled by the host computer, one key can make all device in the room go up or down.

9. With USB port on the desktop panel, the user can read or upload files by connecting U disk.




Main Screen Specification:


Model

TS-FE173T

Touch screen

Touch control

Lifting time

28S

Elevation angle

0-30°, completely accord with ergonomic principle, without blocking the view and face

Product size

476*70*565mm

Panel size

476*70*3mm

Cabinet size

461*60*562mm

Desktop opening size

463*62mm (recommended to open hole according to the actual product)

Panel sinking size

477*71*3mm(recommended to open hole according to the actual product)

Environment conditions

-20 ° C ~ 50 ° C, relative humidity ≤ 70%

Screen size

17.3"

Screen ratio

16:9

Screen resolution

1920*1080

Video port

VGA, HDMI

Back light type

WLED, 15K hours, with LED driver

Contrast

700:1

Brightness

300cd/m2

Viewing angle

89/89/89/89 (Typ.)

Screen thickness

10mm

Power supply

AC 220V 50-60/HZ

Power consumption

>25W


Vice Screen Specification:


Size

11.6 inches

Screen

Notouch screen

Resolution

1366*768

Contrast

8001

Brightness

250 (Typ.)

Working environment

Working temperature: 0 ~ 50 °C; storage temperature: -20 ~ 60 °C

Operating frequency

60Hz

Viewing angle

89/89/89/89 (Typ.)(CR≥10)

Screen type

IPS screen  full view

Screen voltage

3.3V

Signal system

eDP (1 Lane), terminal, 30 pins
