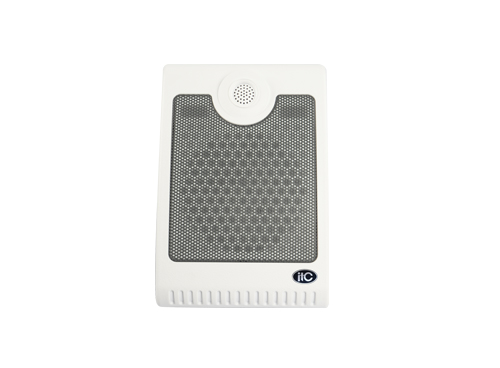

T-601 Wall Mount Speaker

The Details Related Solution Related Cases Related Video Download

Feature:

Built-in 100v/70v transformer

Wall mount type loudspeaker

6.5” speaker unit

Power taps 3w-6w-10w @100V

ABS enclosure and metal grille

Easy and fast installation design

Description

The T-601 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 6.5” speaker driver is designed of wide frequency response 130-1 8K Hz, the multiple power taps 3W, 6W &10W are helpful for different applications varies from room size and ambient noise surroundings.

The ABS enclosure is of white color and metal grille is of gray color. Easy and secure wall mount installation through the supplied mounting holes

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Specification

Product Model T-601
Frequency Response (-10dB) 130-1 8 KHz
Max. SPL (Rated W/1M) 101dB
Impedance Com/3.3KΩ/1.7KΩ/1KΩ
SPL(1W/1M) 91dB±3dB
Power Taps @70V 1.5W, 3W, 5W
Power Taps @100V 3W, 6W, 10W
Dimensions 185 x 275 x 105mm
Finish Baffle: ABS, White Grille: Steel, Gray
Weight 1.4Kg
Mounting Hook
Speaker Driver 6.5
