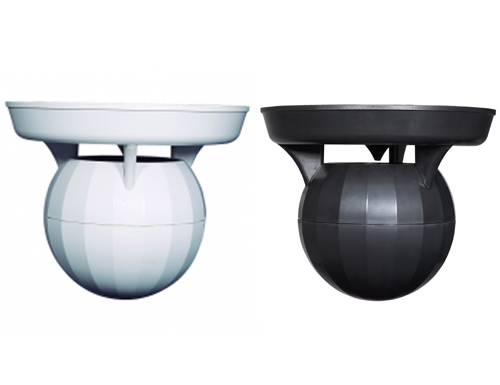

T-600B/ T-600W Pendant Loudspeaker (360 Degree Dispersion)

The Details Related Solution Related Cases Related Video Download



Features:


Ceiling speakers. Various installation methods, using 360° sound coverage, unique appearance, suitable for hotels, shops, etc.



Specification:


Model

T-600B (Black) / T-600W (White)

Power taps @100V

7.5W, 10W, 15W, 20W, 30W, 60W

Power taps @70V

3.75W, 5W, 7.5W, 10W, 15W, 30W

Impedance

White: 1.3KΩ  Red: 1KΩ  Yellow: 670Ω



Brown: 500Ω Blue: 330Ω  Green: 165Ω  Black: Com

SPL(1W/1M)

102dB

Frequency response (-10dB)

100Hz-13KHz

Speaker driver

6" x 1

Dimensions

385 x 385 x 302mm

Weight

3.4Kg

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/1794.html
Related Products
T-6832C Ultra-thin speaker.jpg

T-6832C Ultra-thin speaker


T-4535C Ultra-thin speaker


T-200D/ T-200DW Pendant Speaker (15W)


T-600B/ T-600W Pendant Loudspeaker (360 Degree Dispersion)
T-600B T-600W.pdfDownload
