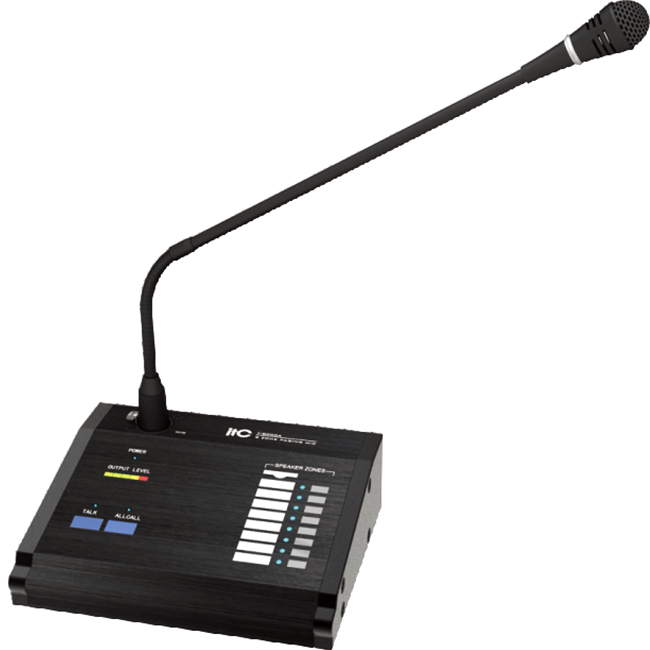

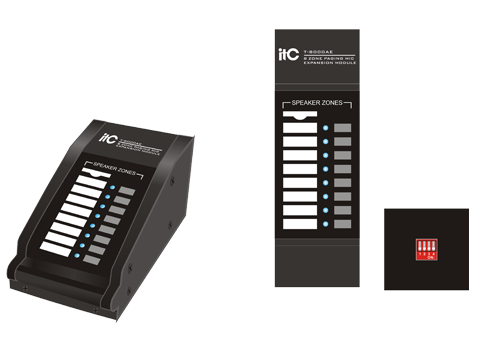

T-8000A Remote Paging Console T-8000AE Extension Control Keypad

The Details Related Solution Related Cases Related Video Download


Features:


* The T-8000A remote paging console is connected with T-8000 through universal industrial standard CAT 5 for zone announcement or communication at a remote and different location from the control center.

* Each controller provides four RJ45 ports for the remote paging console.

* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but alsointegration of RS 485 communication and audio transmission together.

* Extra DC 24V power supply.

* Eight zone selector with state indication.

* Talk and all zone paging swift keys are provided.

* 2 and 4 tones chimes with selector and off switch.

* Volume controls are provided for chime and microphone.

* Full indications includes individual zone, all zone, busy, paging, power, output level to provide a direct visualization.


Specifications:


Model

T-8000A

T-8000AE

MIC

Condenser Microphone

Frequency Response

50Hz~18KHz (±2dB)

S/N Ratio

Better than 75dB

THD

Less than 0.1% at 1KHz,

Signal Output

0.775V/600Ω

Mic Input

5mV/600Ω

Indication

Individual zone, all zone, busy,



paging, power, output level indicators

Protection

DC+24V/2A, Revert fuse protection

Power Supply

DC 24V

Power Consumption

5W

Weight

2.22Kg

0.54Kg

Dimensions

200 x 142.7 x 51.5mm

71 x 143 x 52mm
