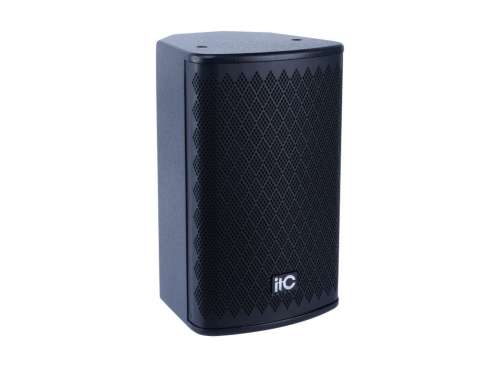

It works with the professional amplifiers and audio processors, forming a set of high-end professional sound system with perfect sound effects and outstanding vocal performance. It is applicable to theaters, karaoke rooms, high-end conference rooms, multipurpose halls and other places. It can also work with the subwoofer to compose a high-performance satellite box.
* Use a mid-woofer unit and a circular polyethylene diaphragm compressed tweeter unit.
* 15mm plywood housing, light weight, wear-resistant spray paint processing, and dust-proof net cotton outside.
* The frequency divider in precise design is used to optimize the vocal MF performance.
* Multiple screw hoisting holes, a pole socket with a diameter of 35mm, various installation methods.
|
Model |
TS-608/TS-610 |
|
Impedance |
8Ω |
|
Frequency response(-10dB) |
60Hz~20KHz |
|
Rated power |
200W |
|
Peak Power |
800W |
|
SPL (±2dB) within a specified frequency band |
96dB/W/M |
|
Coverage angle |
(H)80° (V)60° |
|
Tweeter |
1.4" compressed tweeter × 1 |
|
Woofer |
8" woofer × 1 |
|
Dimension (H×W×D) |
246×243×442 |
|
Weight |
9.5kg |
|
Model |
TS-612 |
TS-615 |
|
Impedance |
8Ω |
8Ω |
|
Frequency response |
50Hz~20KHz |
45Hz~20KHz |
|
Rated power |
350W |
450W |
|
Peak Power |
1400W |
1800W |
|
SPL (±2dB) within a specified frequency band |
121dB |
123dB |
|
THD |
|
|
|
Coverage angle |
(H)80° (V)60° |
(H)80°(V)60° |
|
Tweeter |
1.7" compressed tweeter × 1 |
1.73" compressed tweeter × 1 |
|
Woofer |
12" woofer × 1 |
15"woofer × 1 |
|
Dimension (H×W×D) |
560×360×380mm |
660×435×430mm |
|
Weight |
19.2Kg |
25.8Kg |
