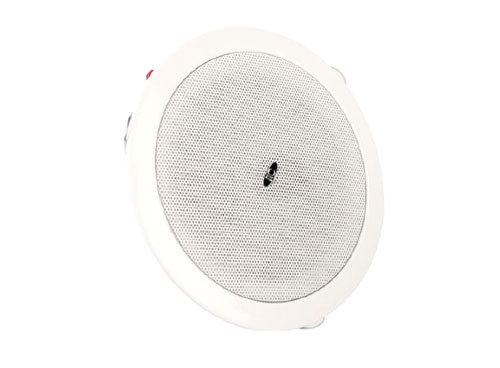

Ceiling Speaker TF-VN0620

The Details Related Solution Related Cases Related Video Download


Specification：


Model

TF-VN0620

Speaker unit

1×6"

SPL(1W/1M)

92dB

Power taps @100V

3W, 6W, 9W

Power taps @70V

1.5W, 3W, 4.5W

Access method

COM + 70V + 100V

Impedance

3.3KΩ (red), 1.7KΩ (green), 1.1KΩ (white)

Frequency Response (-10dB)

110-18KHz

Dimensions

245×66mm/ Cutout size 220mm

Weight

1Kg

Material

Iron shell+aluminum grille

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/5658.html
TF-VN0620.pdfDownload
