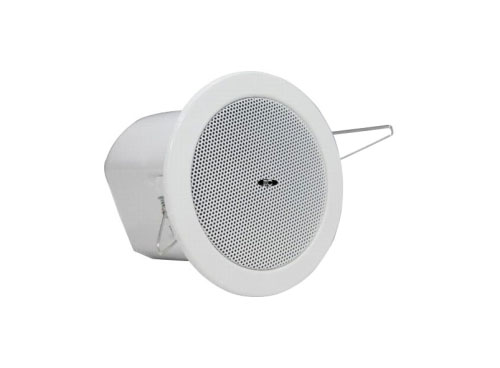

Ceiling Speaker TF-VN0420GK

The Details Related Solution Related Cases Related Video Download


Description：


1.High quality ceiling, 4-inch speaker unit, white paint. Waterproof unit, with iron back cover. 2.Suitable for hotels, hostels, clubs, etc.


Specification：


model

TF-VN0420GK

Speaker unit

1×4"

Sensitivity

90dB

Rated Power

3W, 6W: connected to 100V

Rated Power

1.5W, 3W, 70V

Access method

COM, 70V, 100V

Impedance

3.3KΩ (white), 1.7KΩ (red)

Frequency Response

60-18KHz

size

135×107mm/opening : 110mm

Protection level

ip66

weight

0.7Kg

Material

iron mesh cover

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/5655.html
TF-VN0420GK.pdfDownload
