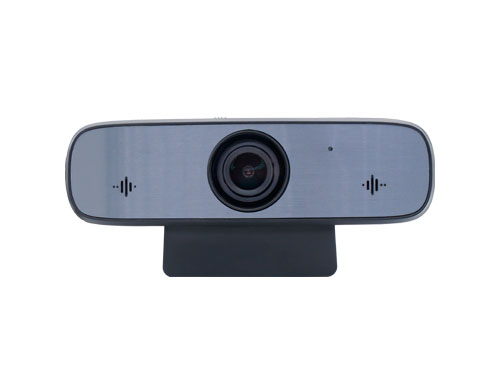

Designed for small and medium-sized meeting rooms and personal office scenarios, this high-performance USB camera integrates a 1080P HD camera and a digital array microphone, providing an all-in-one audio and video experience. It can be connected directly to displays, computers, and other peripherals via USB to start a meeting instantly. The unique sliding privacy cover allows users to close the camera lens at any time, protecting personal privacy.
* Equipped with a high-quality 2-megapixel CMOS image sensor, it supports 1080P30/25 image encoding output at maximum and is backward compatible with lower resolutions such as 720p.
* Built-in microphone array supports 360° omnidirectional audio pickup with a maximum pickup distance of up to 6 meters. Equipped with noise suppression and AGC algorithms, it delivers clear and natural voice communication. Advanced 2D and 3D noise reduction technologies are adopted to further reduce noise.
* With a wide field of view, the maximum horizontal field of view can reach 90°, providing a wider shooting range without image distortion. AF autofocus function is available as an option.
* Supports a full-function USB 2.0 interface. A single USB cable provides power supply, control, audio, and video transmission, simplifying cabling.
* Achieves gimbal functionality with higher precision, no noise, and greater reliability and durability without the need for mechanical rotation devices, while also supporting 4x digital zoom.
* Equipped with an integrated sliding privacy cover that can be closed at any time to protect the privacy of attendees.
* Mounted via a damped rotating shaft bracket, it is compatible with almost 100% of monitors on the market, offering easy, stable, and reliable installation.
|
Sensor |
1/2.8-inch CMOS sensor, 2.07 million effective pixels. |
|
Scanning method |
Progressive scan |
|
Lens mount type |
M12 |
|
Lens |
Focal length: f=2.8mm, Horizontal field of view: 90° |
|
Minimum Illumination |
0.5Lux@(F2.0, AGC ON) |
|
shutter |
1/30s~1/10000s |
|
White Balance |
Automatic, manual, specified color temperature |
|
Camera bracket |
Standard damped rotating bracket |
|
Digital noise reduction |
2D & 3D digital noise reduction |
|
Backlight compensation |
Support |
|
Digital zoom |
4× |
|
Supported operating systems |
Windows® 7 (1080p and below only), Windows 8.1, Windows 10 or later; macOS™ 10.10 or later; Linux (UVC support required) |
|
Hardware Requirements |
2.4GHz Intel® Core 2 Duo processor or higher ; 2GB RAM or higher; USB 2.0 ports. |
|
Color space/compression |
YUY2/H.264/MJPEG |
|
Video format |
1080P30/25; 720P30/25; 960×540P30/25; 640×360P30/25; |
|
USB Video Communication Protocol |
UVC1.1 |
|
UAC |
Support |
|
UVCPTZ control |
Support (ePTZ) |
|
USB interface |
1 × USB 2.0 : Type A |
|
Input voltage |
5V (USB powered) |
|
Input current |
0.2A (maximum) |
|
Operating temperature |
0 ℃ ~40 ℃ |
|
Storage temperature |
-40 ℃ ~60 ℃ |
|
Power consumption |
1W(maximum) |
|
Dimensions ( W×D×H ) |
103.93×63.74×45mm |
|
Net weight |
153g |
