Product Introduction:

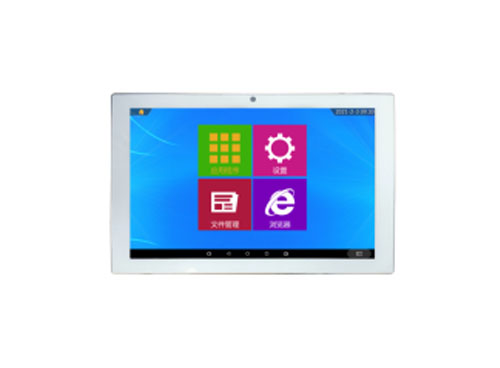

This is a 10.1-inch capacitive touch all-in-one machine developed based on the Android system. The display screen is a 10.1-inch high-definition display with a resolution of 1280*800, providing delicate picture quality. It has a built-in 200W camera and speaker, supports PoE power supply, and can communicate and control with the central control system. It also has indicator lights to provide feedback on different scenarios. It is suitable for various mid-to-high-end conference rooms, control centers, and other occasions, making it a high-end human-machine interface device.

Features:

1. Thin body, overall thickness 27mm, one-piece high-precision molded middle frame.

2. It has a built-in 200W camera and 2*1W speakers .

3. Two RJ45 network interfaces, supporting gigabit network transmission.

4. Supports multi-touch on capacitive screens.

5. Full-view HD screen with a resolution of 1280*800 .

6. It supports PoE power supply, simplifying wiring.

7. Supports DC12V/2.6A power supply.

Technical parameters:

CPU	RK3568, quad-core 64-bit, Cortex-A55, 2.0GHz
RAM	LPDDR-2G
Memory	EMMC-16G has a built-in (expandable TF card) slot.
operating system	Android 11.0
Display screen	LED backlit LCD screen (Grade A)
resolution	1280*800
Visible area	216.5*135 mm
Contrast	2000:1
brightness	300cd/m2
screen ratio	16:10
touchscreen	10.1-inch capacitive touchscree, supports 10-point touch mode, response speed ≤3ms
LED strip	I/O port protocol, built-in seven-color LED light strip
Media Playback	Video formats: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV Audio formats: MP3/WMA/AAC Image format: jpeg
trumpet	8Ω 1W×2
Camera	200W front camera
Communication interface	One 10M/100M/1000M adaptive Ethernet
Back-out interface	Supports both Ethernet and RS-485 serial ports on the back, suitable for embedded installation.
Side control interface	Dry contact NO/NC/COM interface
Other interfaces	Two external USB 3.0 ports (one of which is USB_OTG).
WiFi/3G/4G/Bluetooth	Supports WIFI-2.4G and BT-4.1.
POE	Supported by IEEE 802.3at/af
powered by	Supports PoE/DC12V power supply
Overall power consumption	≤12W
standby power consumption	≤1W
Operating temperature	-5℃～45℃ (Screen operating temperature is 0℃-40℃)
Operating temperature	0℃-40℃
Operating humidity	30%～85%
Storage temperature	-10℃～50℃
Storage humidity	10%～90%
Altitude	Below 2000 meters
color	silver
Gross weight (packaging)	2kg
Packaging size (width × height × thickness)	30927055mm
Weight	1.3kg
Dimensions (L×W×D) mm	253.5163.530mm

Model Configuration Clarification

- The ITC TS-9110A product family is available in different factory configurations according to the technical specifications required for each order. The model TS-9110A identifies the standard configuration, while the model TS-9110A(s) identifies the factory-enhanced configuration that incorporates additional technical features installed by the manufacturer. Both configurations belong to the same TS-9110A product family and use the same base product platform.

- The letters (s) are factory configuration identifiers within the TS-9110A product family and are used for ordering, production, and product traceability purposes. The configuration letter does not represent a different product family.

- For this project, the TS-9110A system will be supplied in the TS-9110A(s) factory configuration, incorporating the following additional required technical features.
