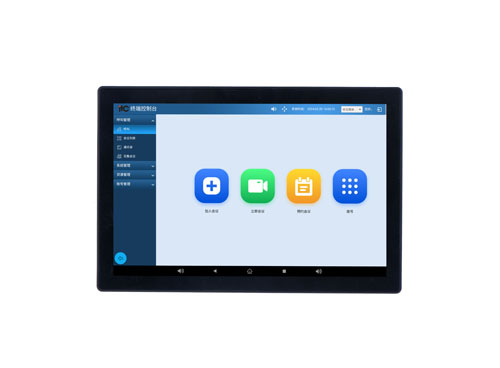

* It has a 10.1-inch capacitive screen, built-in Android 9.0 system, built-in video conference software control application, and supports the control of conference or video conference terminals.
* Supports functions such as address book, joining a meeting, scheduling a meeting, immediate meeting, dialing/hanging up, inviting people to join a meeting, setting screen layout, mute, camera control, applying for and releasing the chairman, applying to speak, and viewing media information.
* Built-in wireless WiFi module supports wireless access to the network .
* With multi-angle adjustment bracket and also supports wall-mounted installation .
* Supports USB 5V, PoE and other power supply methods.
|
Operating system |
Android 9.0 |
|
Processor (CPU) |
Six cores, 4xCortex A73+2xCoretex A53 |
|
Graphics Processing Unit (GPU) |
ARM G52 MP4(6EE), supports OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0 |
|
Memory |
4G RAM+16GB ROM |
|
Video codec |
Encoder:H.264/H.265 1080P60 ; Decoder: VP9 Profile-2/ H.265 HEVC MP-10@L5.1 / ; AVS2-P2 Profile 4Kx2K@60fps ; H.264 AVC HP@L5.1 4Kx2K@ 30fps ; H.264 MVC 1080P@60fps |
|
WIFI standard |
IEEE802.11a/b/g/n/ac,WPA,WPA2 |
|
Touch screen size |
10.1-inch IPS touch screen |
|
Bluetooth |
Bluetooth 5.0 |
|
Touch screen touch |
Support 10-point touch |
|
Touch screen resolution |
1920×1200 |
|
Screen brightness |
300cd/㎡ (typ) |
|
Touch screen viewing angle |
170 degrees |
|
Standard interface |
1 × USB2.0 Type-C , 1 × USB2.0 Type-A , 1 × RJ45: 10/100 Base-T |
|
Built-in speaker |
1 × 1.2W |
|
Built-in microphone |
Pickup distance up to 2 meters |
|
Dimensions ( L×W×H ) |
243mm × 164mm × 33mm |
|
Net weight |
0.8076Kg |
|
Maximum power consumption |
15W |
|
Relative temperature |
0°C ~ 40°C (working state), -40°C ~ 70°C (non-working state) |
|
Relative humidity |
10% ~ 80% (working status), 0% ~ 95% (non-working status) |
|
Ambient noise |
Less than 46dBA SPL |
