Equipment Overview:

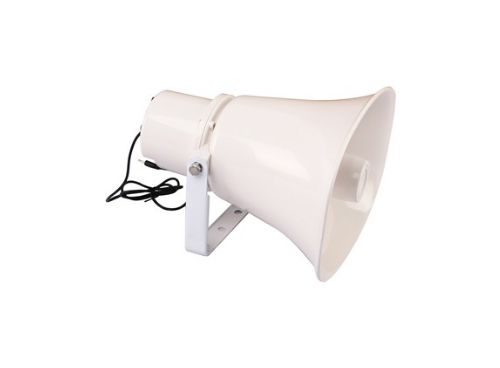

Waterproof horn, organic resin structure, sturdy and durable. The sound has a wide coverage area. Suitable for squares, playgrounds, etc.
Specification:
|
Model |
TZ-A8120 |
|
Power Taps @100V |
15W, 30W |
|
Power Taps @70V |
7.5W, 15W |
|
Impedance |
Black: Com Green: 670Ω White: 330Ω |
|
SPL(1W/1M) |
103dB±3dB |
|
Max. SPL (Rated W/1M) |
117dB |
|
Frequency Response (-10dB) |
300-13KHz |
|
Finish |
Baffle: ABS, White |
|
IP Rate |
IP66 |
|
Dimensions |
282 x 210 x 290mm |
|
Weight |
2.1Kg |
|
Mounting |
With mounting bracket fixed by screw |
