Description

The new-generation server integrates CMS, CRS, MCU, GK, live broadcast, and storage

services. It adopts a plug-in module design and supports HD resolution,

bringing the ultimate remote video conference experience.

Feature

* Standard cabinet structure, using professional domestic audio and video codec chips, carrier-grade plug-in design, support 7*24 hours of continuous work.

* Adopt B/S architecture, support management through the built-in web, support Chinese, English, Russian and

Kazakh language; support hierarchical and decentralized management functions; assign

different permissions to different levels of users.

* Support ITU-T H.323 and IETF SIP protocols; devices that are compatible with H.323, SIP, RTSP and other protocols can join the conference together; support good compatibility.

* Support 64Kbps-8Mbps bandwidth rate; support QCIF, CIF, 4CIF, 480P, D1, 720P, 1080P video resolution; support 4K30fps video resolution.

* Support H.263, H.263+, H.264, H.264 HP, H.265 video codec protocols, support G.711, G.722, G.722.1,

G.722.1C, OPUS and other audio codecs protocol, the sound quality is up to

48KHz.

* Support intelligent mixed

speed, mixed protocol and mixed format functions, allowing terminals with

different rates, different protocols and different video formats to access the

conference at the same time.

* Support the display of the server's CPU usage and memory usage by day, week, month, year and other time lengths in the form of graphs; support real-time statistics and display of the

online number of terminal devices and conference details (including the number

of conferences, conference names, conference status, conference duration, etc.)

in the form of graphs.

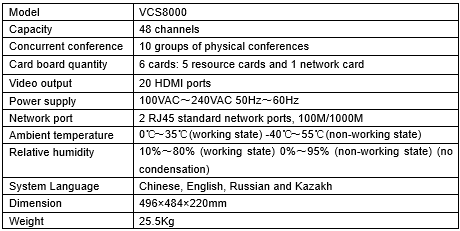

* A single machine supports 10 groups of physical conferences, 48 channels of 1080P concurrent users, and 20 concurrent virtual conferences.

* Support MCU cascading

function, cascading mode can support more than 1000 users joining the

conference; support forming MCU resource pool, MCU distributed architecture,

realize unified management of MCU resources, dynamic allocation of MCU

resources, and mutual backup.

* Support H.239 digital

dual-stream technology, both main and auxiliary streams can reach 1080P.

* The virtual conference mode

supports all terminals sending auxiliary streams at the same time (supports N

terminals in the same conference sending N auxiliary streams at the same time),

and supports mixed images of mainstream auxiliary streams; when supporting the

main video 1080p60fps, the auxiliary video can achieve 1080p60fps HD effect at

the same time.

* Support 19 multi-screen

layouts, each screen has up to 64 images; support Auto split screen function;

auxiliary stream images can be synthesized into multiple images; the image

window supports functions such as automatic filling, voice excitation, video

polling, auxiliary stream display, etc. Support watching the real-time video of

the conference directly on the same interface.

* Support multi-screen

polling function, support up to simultaneous 10 1080P conferences with 64

split-screen multi-screen polling capabilities; specify polling window, polling

venue, polling time interval, etc.

* Support watching the

real-time video of the conference directly on the conference control interface;

support the function of previewing the screen snapshot of the conference site,

and save it to the server as a jpg image.

* The built-in GK module

supports the terminal to register the E.164 extension number and use the E.164

extension number to call each other. Support NAT, H.460 and other technologies,

support passing through the firewall.

* The built-in conference

recording module can record and store multiple conference videos and audios in

real time; support a maximum of simultaneous 10 1080P conferences with 64

split-screen multi-screen recording capabilities.

* Server has 16TB of storage

space (40GB for the system), used to store data files from video conferences

such as voting, sign-in, roll call, shared files, recorded videos, and photos.

* Support video roll call

function, you can set the roll call theme, screen layout, main venue, main

venue display window, and roll call venue display window. After the roll call

is completed, an excel form of the complete roll call result can be downloaded

and saved.

* Support the function of

broadcasting site. In the broadcasting site mode, the conference layout is

switched to the mode where only the site being broadcast is displayed, and all

the sites can only view the screen of the site being broadcast.

* Support RTSP video stream access

to equipment, support monitoring IP cameras directly accessing the conference

through RTSP video stream, and seamlessly connecting with the monitoring

platform.

* The built-in video wall output

function can output the composite images of different conferences, and can also

choose to output a single image of any venue of different conferences, and

supports 20 HDMI video output interfaces.

* Support video wall output

HDMI interface hot-plug board detection function, identify the board connected

to the HDMI cable when scheduling a conference, and designate the board to be

used for conferences.

* Support classified

management of conference media resources, including voting information, sign-in

information, roll call information, shared files, recording videos, and photos.

* Support network ping test,

route trace test, network bandwidth test on the background web management

interface; support real-time display of audio, mainstream, auxiliary stream

network status, including packet loss rate, code stream, frame rate, delay and

other parameters.

* Support FEC forward error

correction function. When reaching 30% network packet loss, the sound is clear

and continuous, and the video is clear and smooth, without lag or mosaic; when reaching

80% network packet loss, the sound is clear and smooth and can be accurately

understood.

* Support live broadcast

function, support RTMP, HLS live broadcast mode; support up to simultaneous 10

1080P conferences with 64 split-screen multi-screen live broadcast capabilities;

you can freely select one venue in the conference or a synthetic media stream

as the live broadcast source, and can switch the live broadcast source at any

time; support mobile phones and other devices watching live broadcasts by

scanning the code. During the live broadcast, text chat can be performed, and

the chat content can be automatically saved to the server.

* Support the browser or

player access to the live link address to watch the conference live broadcast,

and support live broadcast accessing the password management function; a single

machine supports a maximum of 500 concurrent live broadcasts, and the number of

viewers can be viewed through background management.

* Support setting conference

password, conference control password and administrator password; support AES

256-bit dynamic encryption algorithm and H.235 video conference encryption

standard to ensure the security of the conference.

* Provide a complete API

development manual for the system. You can use the API to invoke the system functions

to schedule a conference, get the conference list, stop a conference, delete a conference,

call offline members, set the watch content, set recording, set live broadcast,

set polling, adjust camera, send scrolling messages, set banners, switch screen

layouts, control the speech of each venue, etc. Support seamlessly integrating with

third-party systems.

* The conference notification method supports text message or email; corresponding notification messages canbe set for conference convening, conference change, and conference cancellation.

* Support Chinese, English, Russian and Kazakh subtitles, banners, scrolling messages, and display of

conference venue names, meet the auxiliary display function of conferences.

* Support all conference terminals sending dual streams and watching multiple auxiliary streams at the same time.

* Support video soft terminal access to the conference, and realize the dual-stream function of data; support functions such as electronic whiteboard, voting, and conference sign-in. The

soft terminal can be installed on Windows or MAC computer version, IOS or

Android mobile phone tablet.

* Supports intelligent flow control functions, including notification encoding and automatic bit rate

adjustment functions. After notification encoding is activated, the MCU will

automatically adjust the encoding parameters of the terminal according to the

window size displayed on the MCU by the terminal. After the automatic bit rate

adjustment function is activated, the MCU will automatically adjust the sending

bit rate and resolution of the MCU according to the packet loss and delay of

the sending signal.

* Support rich audio processing mechanisms and management modes; support lip synchronization,

intelligent multi-channel mixing, echo cancellation, automatic gain, noise

cancellation, and venue speech management; support automatic mute function

after joining a conference; the background management terminal supports all

mute, all speak, all silent function, etc.

* Support intelligent multi-channel audio mixing, support broadband voice above 20KHz.

* Supports the voice excitation control mode, and the site with the loudest speech automatically

switches to the specified voice excitation window for display.

* The virtual conference supports the chairman-controlled conference mode and free mode. In this mode, the chairman terminal can realize functions such as conference management and

screen layout.

* When scheduling conferences, you can select the conference media type as pure audio or audio+video.

* Support the function of re-invite at conference site breakpoint; when always invite is selected, after

the terminal is abnormally disconnected, the MCU will re-invite the terminal to

join the conference every 10 seconds until the terminal joins the conference.

When limited invitation is selected, the number of invitations needs to be preset.

If the invitation exceeds the preset number, the MCU will not invite anyone. If

you choose not to invite, the MCU will not actively invite the terminal to join

the conference after the terminal is abnormally disconnected.

* Support moving up, down, left, right, and zooming operations of the terminal cameras through the

background remote control.

* Support the function of setting and displaying the name of the conference site; set whether to display

the name of all the conference sites and the display position, font color,

background color and font size of the name in the conference screen.

* Support the banner function, you can add a banner on the conference screen, and you can set

whether to enable the banner and the font size, font color, and background

color of the banner.

* Support scrolling message function, send scrolling messages, and set whether to enable scrolling messages

and the font size, font color, background color and scrolling times of

scrolling messages.

* Support conference time extension, conference closure, auto-fill, layout switching, audio reception,

audio transmission, video reception, video transmission, video adjustment,

information query, roll call, hang up/call, and group management for ongoing

conferences , designated viewing screen and other conference management

functions.

* Adopt Chinese, English, Russian and Kazakh management interface; realize Chinese, English, Russian and Kazakh WEB management; realize device management, user management, conference

management through Web; support Telnet, ssh and other remote maintenance

methods; conduct zone management according to user characteristics and regional

characteristics.

* Support integrating with voice transcription system, transmit the conference audio to the voice transcription system and transcribe it into text. The voice transcription system then

transmits the transcribed text back to the MCU, and the MCU can superimpose the

returned text on the synthesized screen for display.

* Support log management function, you can choose to enable different levels of log management such as

debugging, information, warning, error, fatal error, etc.

* Support monitoring system hardware functions, including CPU usage, memory usage, disk usage, etc.

* Support remote control and remote upgrade functions.

* Support voice priority, support QOS strategy mode.

* Support IPV4 and IPV6

protocols; support the ability to cross routers and firewalls to ensure system

security; support the settings of parameters such as QOS, NAT, and H.245

tunnels.

* Support the function of

virtual conference room. The system can independently allocate virtual

conference rooms for individual users, and can convene multi-party conferences

without platform reservation; when there are no venues to join the virtual

conference room, it does not occupy port resources.

* Support dual power backup, any

power port failure will not affect the normal operation of the device; support board

backup, when a single board fails, the MCU switches the data and services on

the single board to another within 8 seconds, without affecting the conference,

meet the 7 * 24 hours of continuous normal work.

* Support the establishment

of resource pools to achieve unified management of MCU and support dual-system

hot backup function. When one MCU fails, the terminal can automatically connect

to another MCU within 15 seconds, and the conference automatically resumes.

* Support batch upgrade of

terminal device software versions, and the upgrade time can be customized. No need

to upgrade the devices one by one through other tools; the terminal can be

automatically upgraded when it is turned on.

* Support device management,

operation and maintenance functions; modify the configuration of manageable devices,

such as name, call bandwidth, audio and video devices, registration and network;

view the IP address, MAC address, registration status, version information of

the terminal.

* Support dual networks, support connecting to any two networks, so that terminals in the two networks

can join the same conference at the same time.

Specification
