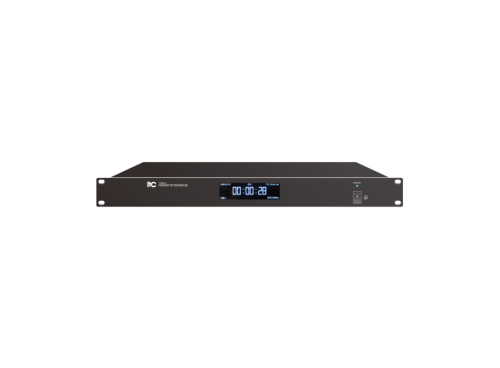

T-8846 Controller

The Details Related Solution Related Cases Related Video Download


Description:


Professional NTP server with built-in network decoding module, communicates with the public broadcasting system through the network , and receives geosynchronous satellite signals for time calibration.


Features:


* Standard cabinet design, exquisite appearance, sophisticated workmanship, showing high-end temperament.

* A variety of network access methods, including DHCP automatic allocation access, ADSL smart dial-up access, fixed IP address access, etc.

* Automatic satellite time calibration is realized , using geosynchronous satellites as the time calibration reference, with an error of ≤ 0.1 seconds from Greenwich Mean Time .

* It supports connection with the public broadcasting system as a time calibration system to ensure the accuracy of the public broadcasting system and timing tasks.

* LCD display shows the current time, signal, satellite and other information .

* The product comes standard with BDS (Beidou Satellite) timing system.

* Can be set to automatically obtain IP address function.

* Supports remote firmware upgrades without the need to upgrade locally on the terminal, reducing the workload of maintenance personnel.


Specifications:


Network interface

Standard RJ45*1 input

Transfer rate

100Mbps

Supported agreement

TCP/IP, UDP, IGMP, ICMP

Power adapter

IN: ~ 220V 50Hz ; OUT: DC 1 2V/ 2 A

Power consumption

10W

Standby power consumption

3W

Operating temperature

5℃40℃

Operating humidity

20%80% relative humidity, no condensation

Dimensions ( W×D×H )

48 2.6×223.7× 44mm

Net weight

2 kg

Antenna feed line length

10m
