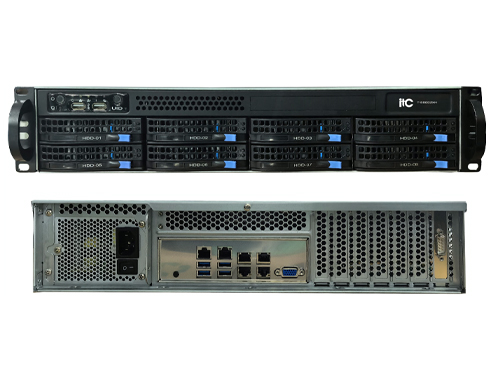

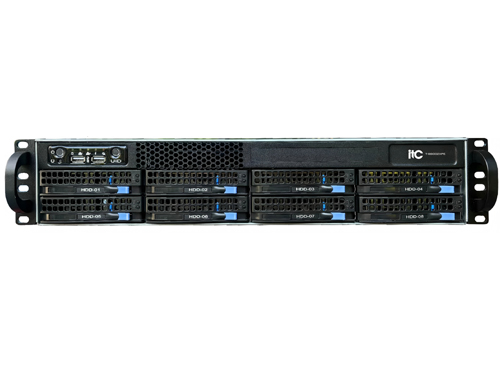

Controller T-8800ZXPE

The Details Related Solution Related Cases Related Video Download


Description:


The IP network digital broadcasting server software serves as the operating platform and control center of the PA system. Installed in the main control room, it provides real-time and effective management of the entire PA system.


Features:


* Industrial-grade 2U rack-mount chassis is robust and supports domestic operating systems, ensuring system reliability and stability.

* It features an array card that supports mirror backup, and data is synchronously written to two hardware blocks to ensure data security.

When used with a digital network PA system, it enables unified management of all audio terminals within the PA system, including paging microphones, intercom terminals, and broadcast terminals; it supports programmed timed tasks, timed music file playback schemes, multiple timed schemes, and arbitrary terminal selection; it also supports custom settings for digital volume of music, intercom, broadcast, fire alarm, etc. on the terminals.



Specifications:


Processor

12 cores, 12 threads, base clock speed: 2.2GHz

Memory

DDR4 32GB

Harddisk

2 x 2TB Enterprise-class hard drives

Array

Support RAID 0, 1, 5, 6, 10 are equipped with RAID 1 as standard.

Network card

2 Gigabit network cards, 1 remote management port BMC, 1 Console

I/O interface

1×VGA , 1×microphone jack, 1×Line-Out port, 1×Line-in port , 2×USB (2.0) ports , 4×USB (3.0) ports , 1×COM port

Operating system

A genuine, activated domestic operating system.

Work environment

Ambient temperature: 5℃35℃; Relative humidity: 5%-85%

Operating power consumption

AC 100-240V input 550W dual power supply

Dimensions ( W × D × H)

482 × 650 × 88mm

Weight

20kg
