Features：

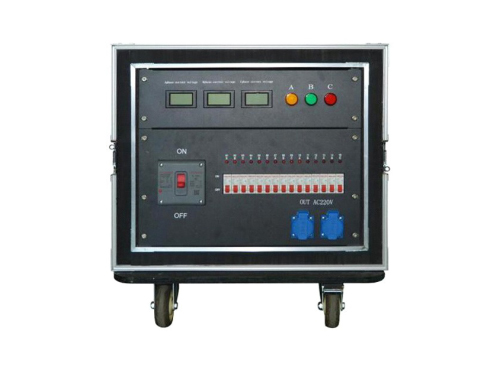

Rental aviation-style box-type power distribution cabinets are designed with hand-held, portable, and mobile flight cases equipped with casters for easy movement, transportation, installation, and maintenance. The enclosed cabinets prevent direct contact with the human body and effectively isolate foreign objects, making them suitable for power distribution protection applications in LED advertising screens, LED rental screens, theaters, TV stations, dance halls, KTVs, large and small parties, mobile performances, and other occasions.
Specification：
|
Rated power |
50kW, 15 output channels |
|
Miniature circuit breaker current |
25A, main circuit breaker current: 125A, short-circuit leakage instantaneous protection value: 10A |
|
Input voltage |
Three-phase five-wire AC380V±10%, frequency 50Hz±5%, with overvoltage, surge, short circuit, overcurrent, and overload protection functions. |
|
Input method |
63A*5P waterproof socket |
|
Output method |
16A*3P waterproof socket, output AC220V voltage |
|
Control method |
Manual control |
|
Operating temperature |
-20℃ to +50℃ |
|
Equipment Material |
Fireproof board + powder-coated iron plate |
|
Enclosure protection rating |
Ip30 |
|
Box dimensions (height * width * depth) |
610mm*610mm*710mm |
|
Equipment weight |
≤40Kg |
|
7. Mobile flight case/distribution box (with wheels), flight case, smart meter, aviation connector |
|
|
10. Built-in 16Aspare socket |
|
