Description：
A two-in-one control server that integrates video processing and video control functions. It has high-definition image processing capabilities, powerful video processing and transmission capabilities, can adapt to complex operating environments, and is widely used in mid-to-high- end rental, stage control and engineering small-pitch LED display fields.
Features：
* Maximum load: 3.9MP, maximum width: 10240 pixels, maximum height: 8192 pixels;
*With 3.5mm independent audio input and output;
*Ability to save and call 256 custom scenes;
*Equipped with 6 independent windows, the window size and position can be adjusted separately;
*Features OSD functionality, enabling text, image, weather, and time display.
*Offers personalized screen scaling modes, including point-to-point mode, full-screen scaling, and custom scaling.
*Supports one-click full-screen scaling.
*Allows arbitrary input source capture.
*Features point-to-point brightness and color correction.
* Supports USB flash drive playback for plug-and-play convenience.
*Supports 3D functionality, enabling 3D display effects via Ethernet with a 3D transmitter and 3D glasses.
*Supports B/S and C/S terminal management;
Specification：
|
Input interface |
|
|
HDMI2.0×1 |
Maximum supported input resolution is 3840×2160@60Hz, custom resolution is supported, HDCP 1.4 and HDCP 2.2 are supported, and accompanying audio input is supported. |
|
HDMI1.3×2 |
Maximum supported input resolution is 1920×1080@60Hz, custom resolution is supported, HDCP 1.4 is supported, and accompanying audio input is supported. |
|
3G-SDI×1 |
Maximum supported input resolution of 1920×1080@60Hz, and supports ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video source input |
|
AUDIO×1 |
Supports 3.5mm standard audio input |
|
Output interface |
|
|
Port×6 |
RJ45, 6-channel Gigabit Ethernet output |
|
AUDIO×1 |
Supports 3.5mm standard audio output |
|
HDMI2.0×1 |
HDMI loopback output interface |
|
3G-SDI×1 |
3G-SDI loopback output interface |
|
HDMI 1.3×1 |
Used for previewing output images; fixed output resolution 1920×1080@60Hz |
|
OPT×2(Optical) |
2-channel 10G fiber optic interfaces: OPT1 optical port is adaptive for both input and output; OPT2 optical port is for output only, supporting both copy and backup modes during output |
|
3D interface×1 |
Using a 3D transmitter and matching 3D glasses, it achieves a 3D display effect |
|

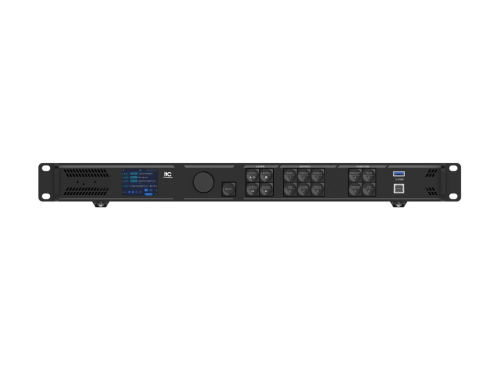

Front panel introduction |
|
|
LCD (2.0 inch) |
Resolution: 320×240, displays current device status and menu |
|
Knob |
Menu selection, parameter adjustment, and confirmation operations |
|
Back button |
Exit current menu or cancel operation |
|
Layer control button |
Layer on/off and layer status display |
|
Button indicator light |
Quick operation and status display for input source |
|
Function shortcut key |
Scene settings menu button, test screen settings menu button, freeze/thaw output screen button, custom function button |
|
USB (square port) x1 |
Connect to control computer for device debugging |
|
USB 3.0×1 |
Supports USB flash drive playback |
|
Control interface |
|
|
ETHERNET×2 |
Connect to host computer for cascaded input or output. |
|
USB2.0×1 |
Upgrade device firmware via USB flash drive. |
|
Rs232×1 |
3-pin central control interface for connecting central control device. |
|
GENLOCK IN-LOOP×1 |
External synchronization signal source |
|
LIGHT SENSOR×1 |
Connect the light probe to achieve automatic adjustment of the screen brightness. |
|
Operating power supply |
AC100V~240V，50/60Hz |
|
Equipment dimensions |
482.6mm×302.2mm×50.1mm (Length × Width × Height) |
|
Equipment net weight |
3.9Kg |
|
Rated power |
43W |
Please leave a message if necessary, we will contact you as soon as possible!
