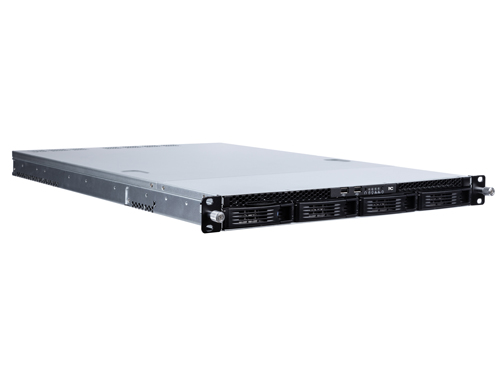

Model

TF-T06100

GPU

Integrated display CPU latest graphics processing core

Processor

E3-v5 quad core processor

System memory

Standard 8G DDR4, support 64G DDR4

BIOS

128Mb SPI Flash EEPROM with AMI BIOS

Onboard LAN

Two 10/100/1000M bps network ports, support port aggregation

Remote control

One RTL8201N dedicated remote interface, support intelligent platform management interface; support virtual media and KVM

IDE controller

4xSATAⅢ (support hot plug)

RAID

Support RAID 0, 1, 5, 10

I/O interface

2xUSB30, Font 2xUSB2.0, rear 2USB2.0, 1x serial port; 1xVGA, 1xIPMI remote management port, 1*RS232 COM port

Hardware monitoring

Fault / error / overload and alarm (including disk / RAID / power / fan / temperature / IO performance)

Hard disk

2T (3.5 inch) hard disk

Box qty

The 4 hard drive extraction boxes are equipped with locking devices, and the sliding rail design makes hard drive extraction more convenient

Hard drive hot swap

Support hard disk hot swap

Power

250W

Working voltage

AC 100-240V, 50/60Hz

MTBF

50000/H (MTBF)

Working temperature

-10℃~60℃

Relative humidity

5%-90%, no condensation

Size

650×437×44.5mm (D×W×H), with guide rails on both sides of the cabinet
