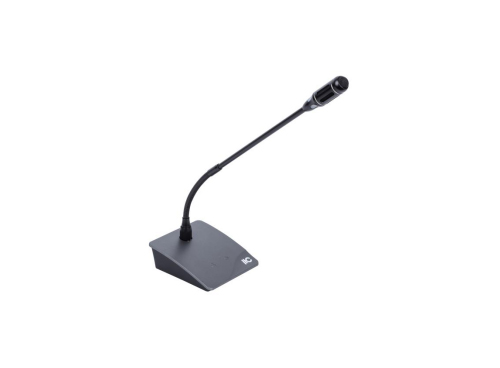

TF-A36108 Conference microphone

The Details Related Solution Related Cases Related Video Download


Features:


* Adopt advanced processing chip architecture and unique processing algorithm.

* Supports sign-in function, which can be set and initiated through PC software. It has speech timing and scheduled speech functions.

* With a digital transmission link.

* It has voice control function and can intelligently turn on the microphone. Adjust the voice control sensitivity and set the off time through PC software.

* Powered by the conference host, with uncompressed audio transmission technology and 48K sampling rate.

* Support PC software microphone control, support voice control function, PING packet function, feedback suppression function, etc., and support multiple protocols, such as ICMP, HTTP, UDP, TCP, IGMP, etc.

* Each microphone unit has an independent web control page, which supports four language switching, adjustment of microphone ID number, microphone sensitivity, microphone EQ and other parameters.

* The microphone adopts 48KHz sampling rate, which is clear and bright.

* It has 5-band EQ adjustment function, which can adjust different sound effects according to the speaker's voice characteristics.

* Support sign-in function, support web page firmware upgrade function, support IP address sniffing function, etc.


Specifications:


Color

Graphite Gray

Sign-in function

Capacitive button sign-in

Power supply

Conference host power supply

Interface

2* level network port

Installation

Desktop

Microphone Type

Cardioid electret

Frequency response

80Hz~16KHz

Microphone input impedance

680 Ω

Maximum SPL

120dB

Signal-to-Noise Ratio

>80dB(A)

Sensitivity

-41±1.5dB(0dB=1V/Pa,at1KHz)

Maximum power consumption

2W

Crosstalk

>70dB

Dynamic Range

>8 0 dB

THD

<0.3%

Dimensions (LxWxH)

113×100×36mm (excluding microphone rod length)

Microphone rod length and color

380mm Black

Weight

0.8kg
