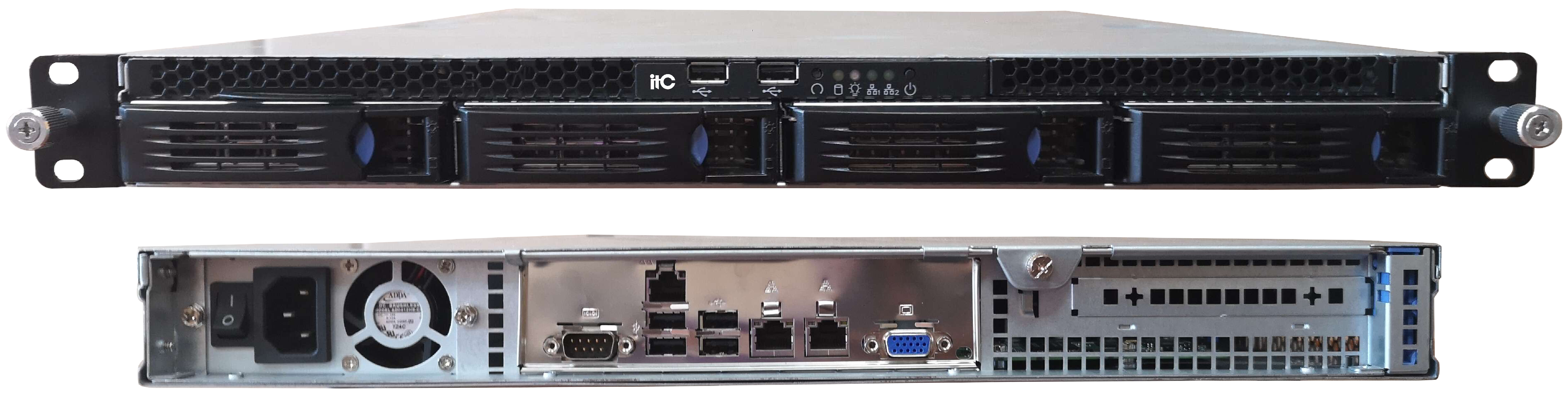

The conference management server is a high-performance server specially used for conference systems. Working with system software, it can realize conference appointment, sign-in, voting, conference room management and other functions.
* High-quality 1.0mm galvanized steel plate, stable structure, double-ball high-speed fan, excellent heat dissipation.
* 1U rack-mounted design, stable structure and excellent heat dissipation.
* Support hot swap, support up to 4 hard drives, support RAID0, 1, 5, 10.
* Dedicated remote port supports remote management.
* 2 Gigabit Ethernet ports, support port aggregation function.
* Dedicated server power supply, support redundant power supply.
Model
TR-0600T
GPU
Integrated display CPU latest graphics processing core
Processor
E3-v5 quad core processor
RAM
Standard 8G DDR4, support maximum 64G DDR4
BIOS
128Mb SPI Flash EEPROM with AMI BIOS
Onboard LAN
2 10/100/1000M bps network ports support port aggregation
Remote control
1 RTL8201N dedicated remote interface, support intelligent platform management interface; support virtual media and KVM
IDE controller
4xSATAⅢ (support hot swap)
RAID
Support RAID 0, 1, 5, 10
I/O interface
2×USB 3.0, 4×USB2.0 (2 on the front, 2 on the rear), 1×VGA, 1×IPMI independent remote management port, 1×RS232 COM port
Hardware monitoring
Fault/Error/Overload and Alarm (including Disk/RAID/Power/Fan/Temp/IO performance)
Hard disk
2T (3.5 inch) mechanical enterprise hard drive
Box qty
The 4 hard disk extraction boxes are equipped with locking devices, and the sliding rail design makes the hard disk extraction
more convenient
Hard drive hot swap
Support hard disk hot swap
Power
250W
Working voltage
AC 100-240V, 50/60Hz
MTBF
50000/H (MTBF)
Working temperature
-10℃~60℃
Relative humidity
5%-90%, no condensation
Dimension
479.4×650×44mm, with guide rails on both sides of the case
Weight 9.62kg
