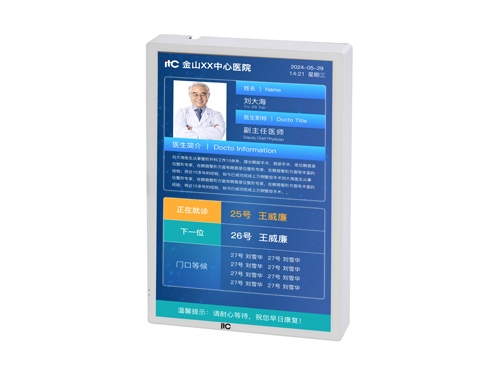

The secondary triage screen is placed at the entrance of the clinic or the examination window. It is suitable for medical scenarios, displays the information of the attending doctors and the patient queue information, and supports number calling playback.
* Supports displaying the information of the doctor currently sitting in the clinic, including the doctor's photo, name, title, and introduction.
* Supports display of patient information, including current patient information, next patient information, and patient waiting in line information.
* It supports displaying promotional slogans at the bottom of the screen, and the slogan content can be modified through the background software.
* Supports background remote upgrade.
* Supports privacy protection of patient names, and displays patient names with an asterisk (*), such as Zhang* and Huang*yi.
* Supports call number prompts, patients whose numbers are called will receive special prompts, and supports voice broadcast.
* The device's calling voice volume can be adjusted in the background, and the display interface can be remotely screenshoted.
* Support setting any time period for scheduled power on and off.
* Supports log viewing function.
* Supports replacement of display templates, and can customize template styles according to the on-site environment.
|
Screen size |
21.5 inches |
|
Resolution |
1920 * 1080 |
|
Screen ratio |
16:9 |
|
brightness |
250 cd/ ㎡ |
|
Contrast |
1200:1 |
|
Viewing angle |
178° |
|
Backlight life |
50000Hrs |
|
Glass hardness |
Explosion-proof tempered glass, Mohs 7 hardness |
|
CPU |
Quad-core, main frequency 1.8GHz |
|
Running memory |
2 GB DDR4 |
|
System memory |
32GB |
|
Android system version |
Android 11 |
|
Built-in speakers |
3 W × 2(8 Ω) |
|
Device interface |
USB3.0 × 2; HDMI output × 1; 3.5mm audio output interface × 1; TF card slot × 1 |
|
Network input (10/100M) |
RJ45×1 |
|
2.4G WIFI |
support |
|
Input power |
100-240V |
|
Operating power consumption |
≤28W |
|
Standby power consumption |
≤0.5W |
|
Operating temperature |
0～40°C |
|
Operating humidity |
20%～85%RH, relative humidity, no condensation |
|
Overall dimensions ( W×D×H ) |
305 × 28.8 × 508.4 mm |
|
Wall mounting holes |
Horizontal 180 × Vertical 308 |
|
Net weight |
5.0kg |
Please leave a message if necessary, we will contact you as soon as possible!
