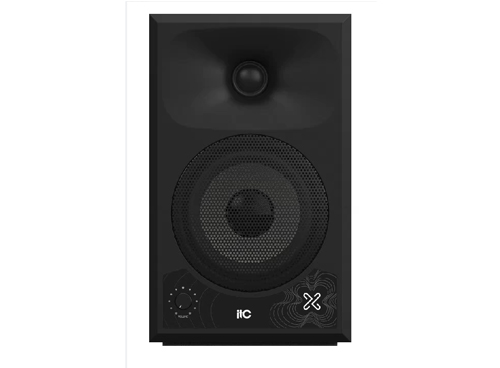

This product design uses dual power amplification technology to provide 70W peak power for the woofer and 50W peak power for the soft dome tweeter, both using DDTⅢ compression. 5.25" composite glass fiber woofer and 1" soft dome tweeter, 1 set of hybrid input connectors and 1 set of RCA input connectors are provided. This makes the sound output more obvious, the transients more vivid and detailed, while improving the dynamics and the natural timbre of the sound.
* Bi-amplifier powered speaker system.
* The woofer has a peak power of 70W and the tweeter has a peak power of 50W.
* 1" soft dome tweeter, 5.25" composite fiberglass woofer.
* 0° phase sound response.
* Features low distortion reflective port.
* With precision directivity tweeter waveguide.
|
Woofer unit |
5.25" composite fiberglass woofer |
|
Tweeter unit |
1" soft dome tweeter |
|
Frequency Range |
50 Hz - 20 kHz |
|
Maximum sound pressure level |
107dB |
|
Horizontal diffusion angle |
110° |
|
Vertical diffusion angle |
70 ° |
|
Input resistance |
XLR/3kΩ,RCA / 20kΩ |
|
Input sensitivity |
XLR/+4 dBu ,RCA/-10 dBu |
|
Total power (Class D amplifier) |
120W |
|
Treble |
50W |
|
Bass |
70w |
|
Crossover frequency |
2.8kHz |
|
Limiting |
Soft |
|
Bass fine tuning Treble fine tuning |
-1.5dB/ 0dB /+1.5dB -1.5dB/ 0dB /+1.5dB |
|
Dimensions (width x height x depth) |
185 × 300 × 243 mm |
|
Net weight |
4.9kg × 2 |
|
Gross weight |
12kg |
