Description:

When the network cable distance between the digital mixer and the interface box exceeds 40 meters, the distance between the digital mixer and the interface box can be extended by adding an amplifier.

Features:

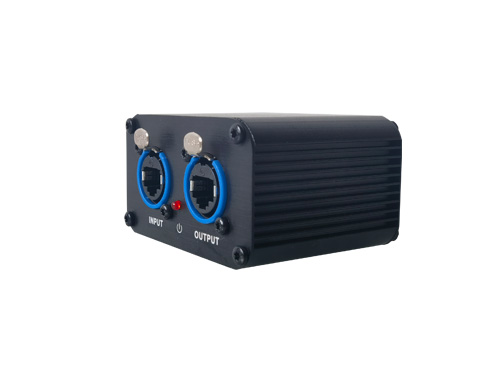

* It has 1 signal input network port and 1 signal output network port. It does not require separate power supply, and the power supply is transmitted through the network cable.

* When the signal of the mixer and the interface box is attenuated during long-distance transmission, the device can be used to amplify the signal; the input network port is connected to the expansion A or B port of the mixer, and the output network port is connected to the network port of the digital interface box.

* When the network cable of the mixer expansion port is connected to the network port of the amplifier input end, the power indicator light of the amplifier will light up.

* The length of the network cable from the mixer expansion port to the input port of the relay amplifier should not exceed 40 meters. Similarly, the length of the network cable from the amplifier output port to the interface box should not exceed 40 meters.
