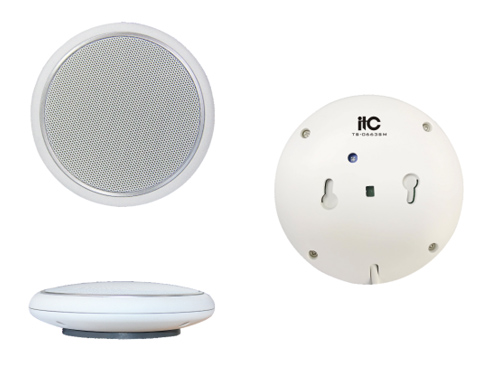

Model

TS-0663SM customized

Pickup range

8m diameter

Sensitivity level

-34dB±3dB（f=1KHZ, 0dB=1V/Pa）

Frequency response

20Hz～16KHz

Direction

Omnidirectional

Dynamic Range

104dB(1KHz at Max dB SPL)

Output impedance

Maximum 600 ohms unbalanced

Maximum sound pressure

110dB

Microphone

Diaphragm condenser microphone

Number of microphones

Single microphone

protect the circuit

8KV Air contact ESD, lightning strike protection, power supply polarity reverse protection

Drive capability

Built-in preamplifier circuit

Connection method

3 leads (Power, Audio, Common)

Transmission cable

3-core 0.5mm² RVVP or 0.3mm²RVPE shielded cable

Voltage

DC regulated power supply DC 12V

Supply current

30mA

Working temperature

-30℃～+70℃

Color

White

Shell material

Metal

Dimensions

Φ120mm×30mm

Weight

160g
