Features:

When used with a video conference controller, it has the characteristics of low latency and low bandwidth.

Description:

* The single board supports 2-channel physical conferencing, simultaneously decoding and displaying 64 channels of 720P30f/32 channels of 1080P30f/8 channels of 4K30/4 channels of 4K60 video.

* Supports multi-screen layout, with each screen supporting up to 64 split-screen views and automatic split-screen functionality.

* Supports H.239 and BFCP dual-stream technology, with both main and auxiliary streams achieving 4K60 resolution.

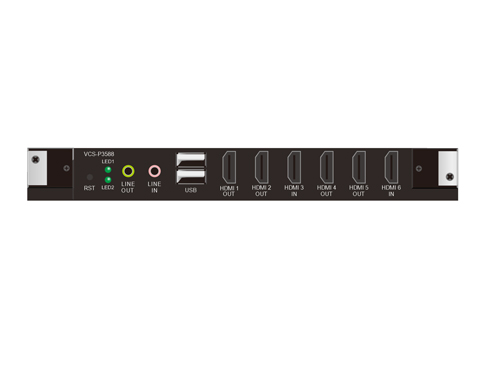

* Supports video wall output functionality; the board has 4-channel HDMI output interfaces, capable of outputting 4K30 high-definition signals for large-screen display; a single board can output 4-channel video streams.

* The board has 1-channel 3.5mm audio input interface, 1-channel 3.5mm audio output interface, and 2-channel HDMI input interfaces, supporting 4K60 resolution.

*  When the board's resources are not in use, it supports audio and video loop-out functionality.

* The board has 2-channel USB 3.0 interfaces for upgrade capabilities.

* Built-in AI model, supporting AI functions such as speech transcription, electronic nameplates, and meeting minutes.

Specifications :
