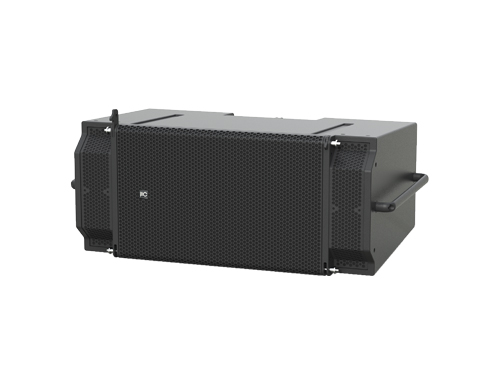

Description:

It is suitable for various large and medium-sized performances, theaters, auditoriums, banquet halls, multi-function halls and various high-end application places.

Features:

* Product design: It adopts a lightweight box structure, while maintaining high sound pressure level output (maximum 143dB peak sound pressure), the volume is reduced by about 25% compared with the traditional line array. With a quick lock hanging system, it significantly reduces the difficulty of transportation and deployment, and is suitable for theaters, auditoriums and other scenes.

* Drive unit configuration: dual 12" neodymium woofer + 3" neodymium coaxial mid-high unit, low frequency dive to 50Hz, explosive power and delicate feeling coexist, shocking bass, easily obtain a sufficiently full and elastic low-frequency effect .

* Professional-grade cabinet structure: marine plywood cabinet + polyurea spray paint protection, impact resistance, corrosion resistance, stable performance in extreme environments, and lifespan extended by more than 30%.

* Precise sound field control: Using simulation optimized line sound source waveguide + large diffusion horn technology, the lower limit of the mid-frequency is extended, the vertical coverage angle is accurate to 10°, and the horizontal coverage angle is 110° wide-area diffusion. Multiple speakers are linked without interference .

* High-performance crossover: It adopts a three-way two-drive resistor-free crossover, equipped with imported metal film oil-immersed capacitors and oxygen-free copper inductors, which reduces losses while providing a warm and transparent tone. It also brings the special tone of oil-immersed capacitors and delicate resolution comparable to Hi-Fi level.

* Designed for easy installation and portability: The three-point hanging system supports 0°-7° vertical angle adjustment; the box is equipped with an ergonomic handle + aviation socket for simple installation and deployment .

Specifications:

1. System Type : Line Array

2. Rated power : 950W

3. Peak power : 3800W

4. Nominal impedance : 8Ω

5. Frequency response range : 50Hz-20KHz ( ± 10dB )

6. Sensitivity : 107dB (1M/1W) (±3dB)

7. Maximum sound pressure level (rated/peak): 137dB/143dB

8. Total harmonic distortion : ＜4%

9. Coverage angle (-6dB): 110° (H) 10° (V)

10. Woofer specifications : 2×12" neodymium magnet

11. Mid-treble unit specifications : 1×3" neodymium magnet coaxial mid-treble

12. Box material: Marine plywood box + polyurea spray paint protection

13. Input interface type: 4-pin non-slip snap-on plug

14. Suspension system: three-point suspension

15. Adjustment angle range: 0°-7°

16. Operating temperature range: -25°C~+55°C±2°C

17. Dimensions (H×W×D): 380×940×530mm

18. Weight:51.3Kg
