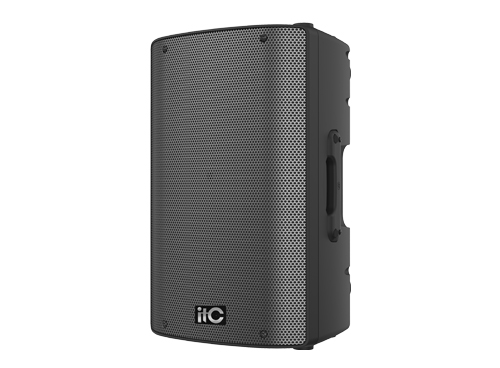

TP-15H 500W Professional speaker

The Details Related Solution Related Cases Related Video Download


Description:


Suitable for outdoor sound reinforcement in various places with high humidity.


Features:


* It consists of a 15 -inch waterproof woofer and a 1 -inch neodymium tweeter .

* The box body is made of injection-molded engineering plastics, and the front metal mesh is pasted with mesh cotton to improve weather resistance .

* It has a trapezoidal and monitor-like appearance and can be used as a stage monitor when placed horizontally .

* Two- way passive frequency division and distortion-free wavefront propagation technology ensure that the frequency ranges of the speaker groups do not interfere with each other, ensuring that the frequency response and sound pressure level of the speakers within the coverage range are average, achieving a very clear and consistent listening effect .

* High-frequency PTC protection circuit effectively protects the speaker unit and increases its service life .

* Provides 35mm standard pole-type floor mounting, 4 × M10 hanging points , and 3 × ergonomic handles .

* Professional waterproof plug connector 2 × SPK4 (Pin1+, Pin1-) and speaker input socket waterproof cover , with good electrical characteristics .


Specifications:

Type

Outdoor full range speaker

Rated power

500W

Peak power

2000W

Nominal impedance

Frequency range (-10dB)

50HZ -20KHZ

Crossover frequency

2.5KHz

Sensitivity (±3dB)

94 dB (1 M /1 W)

Maximum sound

pressure level ( rated/peak )

121dB/127dB

Woofer

1×15" ferrite unit 2" voice coil

Tweeter

1×1" Neodymium Driver 1" Voice Coil

Coverage angle (-6dB)

90 ° (H) 60 ° (V)

Dimensions (W×D×H)

393×374.5×625mm

Protection level

IPX4

Weight

13.1K g
