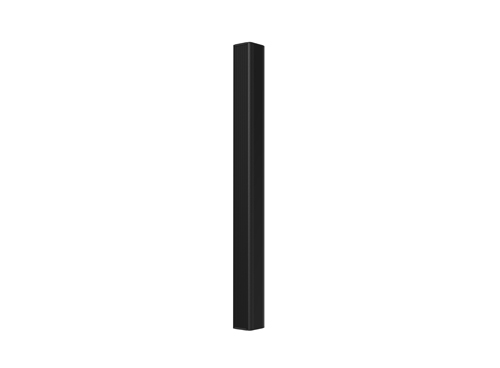

TS-1203HK 400W Professional Column Speaker

The Details Related Solution Related Cases Related Video Download


Description:


Applicable to: language sound reinforcement systems in small and medium-sized video conference rooms, digital courts, conference centers, lecture halls, lecture halls, etc., background music systems in various architectural spaces such as churches, museums, transportation hubs, square public areas , etc.


Features:


* It uses 12 3-inch woofers and 1 1.4-inch tweeter .

* The shell is made of aluminum alloy reinforced box, with a newly designed matte black color. It has a beautiful and practical appearance and is suitable for sound reinforcement in various building spaces .

* High-performance array sound columns can provide good sound reinforcement in some complex environments with high natural reverberation coefficients, echoes, and architectural obstacles in the language and music listening space .

* Sturdy, durable, hard and thick rigid mesh protection, one-piece stamping and covered with high-sound-transmittance acoustic mesh cotton, can prevent dust or liquid from entering and affecting the sound quality, protect the speaker and increase its service life .

* It is particularly suitable for use in medium and long distance sound reinforcement environments and in various indoor architectural spaces .

* With adjustable angle mounting bracket or narrow wall mounting bracket.


Specifications:


Type

Conference full-range column speaker

Rated power

400W

Peak power

1600W

Nominal impedance

Frequency range (-10dB)

80HZ-20KHZ

Sensitivity (±3dB)

94dB (1m/1W)

Maximum sound pressure level (rated/peak)

120dB/126dB

Speaker unit

3" bass × 12

Coverage angle (-6dB)

1.4" tweeter × 1

Input interface

160° (H) 20° (V)

Product size (W×D×H)

1×NL4 1×terminal

Net weight

95×118×1140mm

Type

9.2 kg
