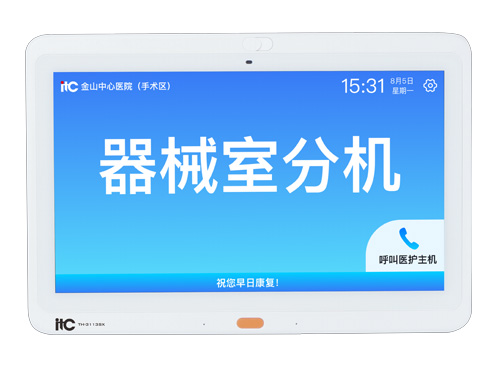

TH-3113SX Collaborative intercom extension

The Details Related Solution Related Cases Related Video Download


Description:


The surgical collaboration extension is usually installed in the instrument room, blood bank, recovery room, pharmacy and other places to assist the operating room to communicate and coordinate efficiently with the outside world. It can intercom with the operating room intercom extension or the medical host, and can play and receive the shouting or voice broadcast issued by the host, thereby improving the coordination efficiency between the external department and the operating room, and ensuring the safety and smooth progress of the operation process.


Features:


* It supports one-click calling of the ward medical host, supports receiving visual intercom calls from the medical host and the operating room intercom extension, and supports high-definition visual full-duplex intercom between extensions to ensure clear and real-time communication.

* It supports displaying the current room, time, date and other information, and supports displaying emergency notifications issued by the system background . The emergency notification pop-up window can be reduced in size to facilitate users to view it while handling other tasks.

* It supports receiving audio broadcasts and shouting broadcasts issued by the medical host, and supports reducing the display of shouting broadcasts and audio broadcast pop-up windows to ensure the timeliness and accuracy of information transmission.

* It supports two offline status display modes: server offline and host device offline . It supports synchronizing server time, adjusting ringtone volume, setting device brightness, and restoring to factory settings.

* Equipped with a high-performance quad-core processor, it provides excellent computing power and processing speed, ensuring that the device runs smoothly and responds quickly, providing users with a seamless interactive experience and efficient task processing capabilities .

* Equipped with a precise multi-touch display, users can operate and control by touching the screen, providing a more intuitive and convenient way of interaction.

* Equipped with a 13.3-inch high-resolution display, it presents delicate images and clear text, providing a richer visual experience and a more comfortable reading environment.

* Equipped with a 5MP high-definition camera to ensure clear and detailed visual effects during video intercom and recording.

* Built-in dual microphones improve audio quality and ensure clear and accurate voice conversations during calls .


Specifications:


Processor

Quad-core 2.0GHz

RAM

2GB

Memory

16 GB

Operating system

Android 11

Touchscreen

10-point capacitive touch

LCD screen

13.3 inches

Resolution

1920×1080

Viewing angle

85/85/85/85°

Display mode

Often Black

Contrast

800

Brightness

250cdm2

Screen ratio

16:9

Ethernet

100Mbps/1000Mbps

Type-c

USB OTG function

Network port

RJ45 Ethernet port (standard POE function, IEEE802.3at, POE+, class4, 25.5W)

Voice control port

6P-2.0mm socket (connect to external handheld microphone)

USB

USBHost2.0

Serial port

8P-2.0mm socket (TTL level)

Headphone socket

3.5mm stereo headphone output, with microphone input

Video format

MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9,etc.,support up to 4K video

Audio format

MP3/WMA/AACetc

Image format

Jpeg/png

Wall-mount

100×100mm standard wall-mount VESA hole

trumpet

2×3W

Camera

5MP

Built-in microphone

Standard dual microphones

Operating temperature range

0℃~40℃

Power supply

Support DC12V/1.5A and POE power supply

Rated power

24W

Size

337.32×26.6×228.26mm

Weight

1.22kg
