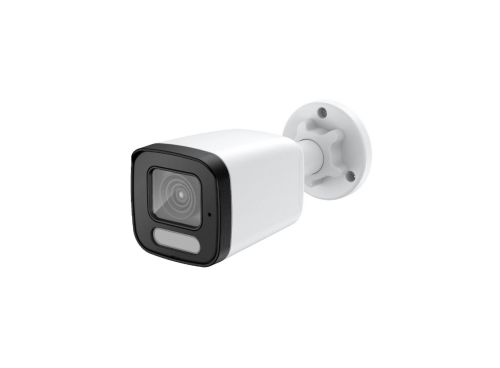

TV-W8533T Barrel Network Camera

The Details Related Solution Related Cases Related Video Download

●IP66 Metal Bullet

● H.265+/H.265/H.264+/H.264 Compression Method

● 5MP available

● 3.6mm F2.0 Fixed Lens

● 4PCS Array IR LED,up to 20m

●With Internal POE

● H.264/H.265/H.265+ video compression standard,2560x1440@30fps real-time video;

● Support HDR, backlight compensation, strong light suppression, 3D noise reduction and image flip;

● Support zoned motor vehicles, non-motor vehicles, and pedestrians to carry out classified detection and defense, and the alarm can be linked to the sound and light alarm, and the alarm information will be reported to the backend ;

● Support soft photosensitive optional full-color mode, Infrared mode, intelligent dual-light mode;

●support voice intercom, voice broadcast, custom voice; support standard onvif protocol;

● Automatic electronic shutter, adaptable to various surveillance environments.

● supports mainstream manufacturers' private protocols, and can be connected to many large-scale platform management systems at home and abroad.

Specification
Model No.	TV-W8533T
chipset
Image Sensor	1/3" 5MP COMS Sensor
Minimum Illumination	Color 0.01Lux@F1.0
SNR	≥50dB
Noise Reduction	support 2D-NR/3D-NR
D-WDR	≤80dB
Electronic shutter	1/3s-- 1/10,0000 s
Lens
Focus Length	3.6mm
F No.	F2.0
Horizontal Angle	78°
Vertical Angle	40°
Diagonal Angle	93°
Lens Type	fixed
Night Vision
IR Cut Filter	YES
Infrared LED	4PCS Warn lights
Light Distance	Up to 20M
Led type	Infared /warm lights/smart dual lights optional
Max Resolution	PAL :2880×1620@25fps ; NTSC ：2880×1620@25fps
Frame	main stream:2880×1620@25FPS ; 2560×1440， 1920×1080,
Frame	Sub-stream：704×576，640×480
Image Settings	Saturation, brightness, contrast can be adjusted by client or browser
Image Mode	General mode; Anti-face overexposure mode; License plate mode
Day/Night Switching	Automatic/external control/manual/timing to control day and night mode
UTC	YES
BLC	Support
Noise Reduction	Support 2D,3D noise reduction
Recording Mode	NVR/CMS/Web
Audio & Video
Audio Processing	G711U/G711A/ACC encoding
Audio Input	Built-in Microphone
Video Processing	H.264/H.265
Compression Code Rate	Support dual stream; support CBR/VBR code rate, adjustable from 512kbit/S to 5120kbit/S
Privacy Masking	Support, quantity up to 4
Intelligent Alarm
Motion Detection	support
Human Detection	Support humanoid detection,Internal POE,vehicle detection,intrusion detection ,Trip line detection
Network Parameters
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 optional)
Client	support local management by PC client, realize multi-channel IPC live broadcast, etc.
Browser	IE kernel browser,Support H5 plug-in free; WEB languages: English, Chinese
Upgrade	Support local upgrade of WEB interface; support batch upgrade of PC management tools
Compatibility	Support ONVIF standard protocol to realize video preview and recording of mainstream brand NVR and PC client
Interface Function
Network Interface	1 RJ45 10 M/100 M adaptive Ethernet port
Audio Input	One microphone input
POE	POE(802.3af)
General Parameters
Language	Chinese, English,
Housing	Metal, IP66
Operation Temperature	(-10℃ ~ +60℃ ) RH95% MAX
Storage Temperature	(-20℃ ~ +60℃) RH95% MAX
Power Source	DC12V±10%, 450mA
Dimension	17368.568.5
Weight	400g
