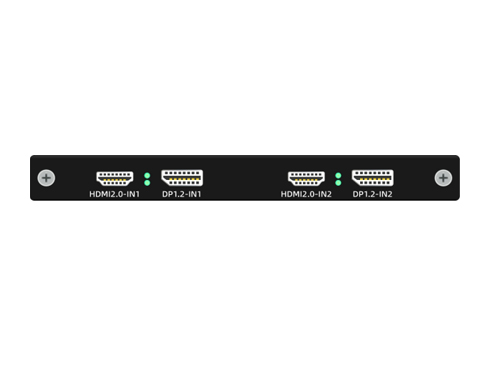

TF-BOS6US-IZ Input card

The Details Related Solution Related Cases Related Video Download


Description:


2-way HDMI2.0+2-way DP1.2 input card, support EDID management, support channel-associated audio input, maximum support 4096*2160@60Hz resolution, with max width of 7680 and max height of 4800, the usage mode supports HDMI2.0 and DP1.2 optional.


Specification:


Interface Type

HDMI2.0、DP1.2

Number of Interfaces

4 (input channel: 2 )

Input Signal

HDMI

Maximum Resolution

4096*2160@60Hz

Working Temperature

0℃-50℃

Working Humidity

10%-80%

Card Type

Blade card

Product Size (L*W*H)

188mm*152mm*19mm

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/5057.html
TF-BOS6US-IZ.pdfDownload
