Description：
* Mixer Digital Amplifier.
*It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
Features:
* Standard cabinet design (1U), exquisite SMT process design.
* 1 EMC input, 2 AUX inputs, 4 MIC inputs.
* Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
* MIC1-4 balanced input with built-in 48V phantom power supply.
* The device is equipped with level indication, overload and protection indicators.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
* Wide voltage power supply: 220V - 240V.
Specifications:
|
Model |
T-B60D |
T-B120D |
T-B240D |
T-B350D |
T-B500D |
||||
|
Output Interface |
4-16Ω, 100V |
||||||||
|
Output Power |
60W |
120W |
240W |
350W |
500W |
||||
|
Input Sensitivity & Impedance |
MIC1, 2, 3, 4 input:5mV/600Ω balanced European terminal |
||||||||
|
AUX1, 2 input:350mV/10KΩ unbalanced RCA connection terminal |
|||||||||
|
EMC input:775mV/10KΩ balanced European terminal |
|||||||||
|
Output Sensitivity & Source impedance |
MIX OUT:1000mV/470Ω unbalanced RCA connection terminal |
||||||||
|
Tone |
Bass:±10dB at 100Hz |
||||||||
|
Treble:±10dB at 10KHz |
|||||||||
|
Frequency Response |
80Hz~16KHz(+1dB,-3dB) |
||||||||
|
SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
||||||||
|
THD |
Less than 0.5%(in 1KHz, 1/3 rated power) |
||||||||
|
Phantom Power |
48V(±2V) |
||||||||
|
Mute Function |
MIC 1 is prior to MIC 2-4,AUX 1-2 audio input; EMC is prior to all audio inputs |
||||||||
|
Channel Crosstalk Attenuation |
≥50dB |
||||||||
|
Heat Dissipation |
Side in and back out forced fan cooling. |
||||||||
|
Start the fan when turned on with infinitely variable speed processing. |
|||||||||
|
Protection |
Overheat protection,Overcurrent protection,short circuit protection |
||||||||
|
Power Supply |
~220-240V /50Hz |
||||||||
|
Power Consumption |
110W |
160W |
300W |
500W |
650W |
||||
|
Dimension |
484×300×44mm |
||||||||
|
Weight |
3.2Kg |
3.6Kg |
3.7Kg |
3.9Kg |
4.0Kg |
||||

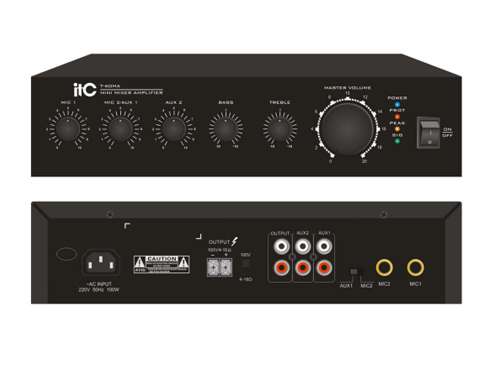

T-60MA/T-120MA/T-240MA Mini Amplifier
T-B60DTBV/ T-B120DTBV/T-B240DTBV/ T-B350DTBV/ T-B500DTBV Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input, with 24VDC)
T-60D/ T-120D/ T-240D/ T-350D/ T-500D Mixer Digital Amplifier(Phone Jack Mic Input)

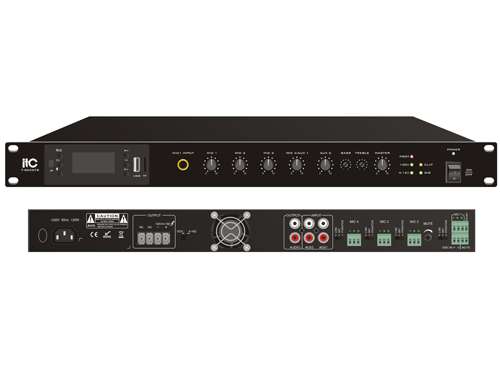

T-B60DTB/ T-B120DTB/ T-B240DTB/ T-B350DTB/T-B500DTB/T-B650DTB Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phoenix Mic Input)
