Operating system

Kirin Desktop Operating System (Zhaoxin Edition) V10 (genuine version activated)

Processor

Zhaoxin KX-U6780A (8 cores)

Memory (standard)

DDR4-8G

Hard drive (standard)

SSD-256G

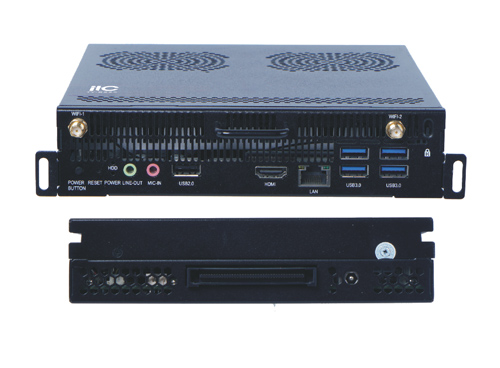

Front I/O

1×USB2.0, 4×USB3.0, 1×HDMI OUT (Max. 4K/30Hz), 1×RJ45, 1×anti-theft lock hole, 1×Reset (hidden hole), LINE-OUT×1, MIC- IN×1, power switch, power indicator light, hard disk indicator light

Post I/O

1×80pin (JAE 80pin)，1×DC IN (2.5/5.5mm）

Extension ports

1×MXM graphics card expansion slot, 1×panel pin (4pin wafer switch+Power LED), 1×COM serial port pin (9pin 2.0mm)

WiFi/BT

Support M.2 2230 WiFi+BT module

Input voltage

DC-IN 12-19V

Working/storage ambient temperature

-5~45℃/-20~70℃

Working/storage environment humidity

10%~90%RH non-condensing/5%~95%RH non-condensing

Power consumption

70W

Overall machine size (L×W×H)

180×195×42 mm

Outer packaging size (L×W×H)

308×278×80 mm

Net weight

1.43 kg

gross weight

1.70 kg
